この記事では、カスタム建具をキープランに対応させる方法について説明します。自作の窓やドアオブジェクトにGDLスクリプトを追加する事で、キープランが表示されるようになります。
ARCHICAD20より、モデル表示オプションの設定が変更になり、「日本語版ライブラリの詳細レベル」で建具記号の表示の切り替えを行うようになりました。ARCHICAD19での「組み立て要素オプション」で建具記号表示の切り替えを行いたい場合は、ArchiCAD19用カスタム建具をキープランに対応させる方法を参照ください。
以下の手順に従ってください。

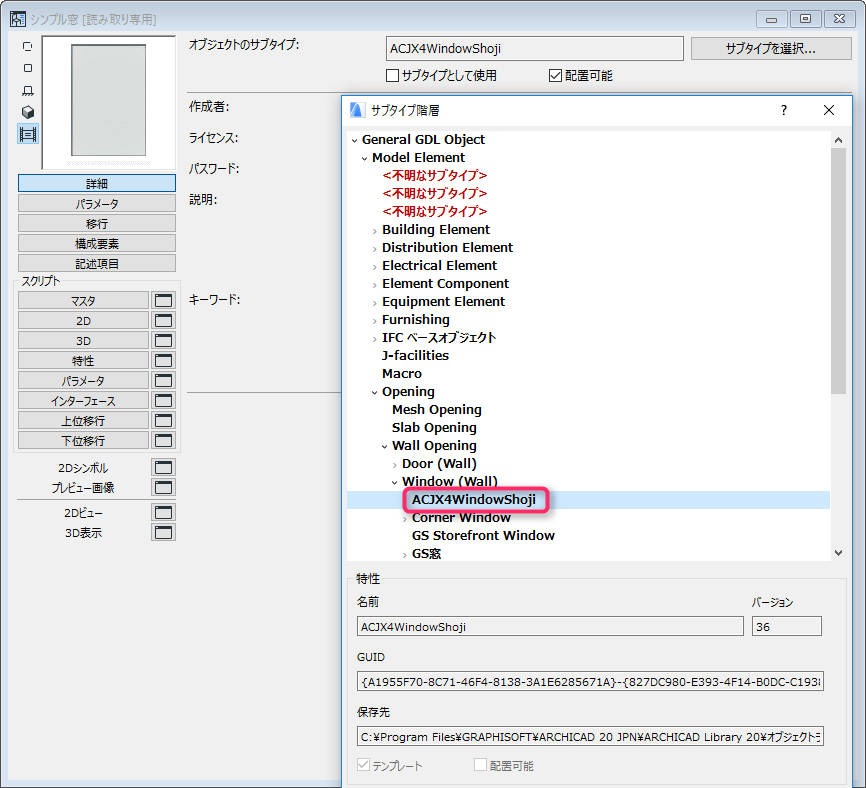

１．保存した建具を開き、サブタイプを日本建具に設定します（例：窓の場合、「ACJX4WindowShoji」）。
[窓のサブタイプ]
2.自作建具の「マスタスクリプト」に以下のスクリプトを貼り付けます。
[窓のマスタスクリプト]
!------------ For Window Marker -----------------------
iWindowCode = 34 ! WIN_SIMPLE
! ============================================================================= ! KeyPlan No.+ sub no. ! ============================================================================= for ii=10 to 1 step -1 if type_no<10**ii then no_len=ii next ii for ii=10 to 1 step -1 if type_no_sub<10**ii then no_len_sub=ii next ii
if no_and_sub = "" then if type_no_sub=0 then type_no_tx = STR(type_no, no_len, 0) else type_no_tx = STR(type_no, no_len, 0) + "-" + STR(type_no_sub, no_len_sub, 0) endif else type_no_tx = no_and_sub endif
parameters type_no_tx = type_no_tx lock "type_no_tx"
if iK_Direction = 2 then k_rot=int(1) if iK_Direction = 3 then k_rot=int(2) if iK_Direction = 1 then k_rot=int(3)

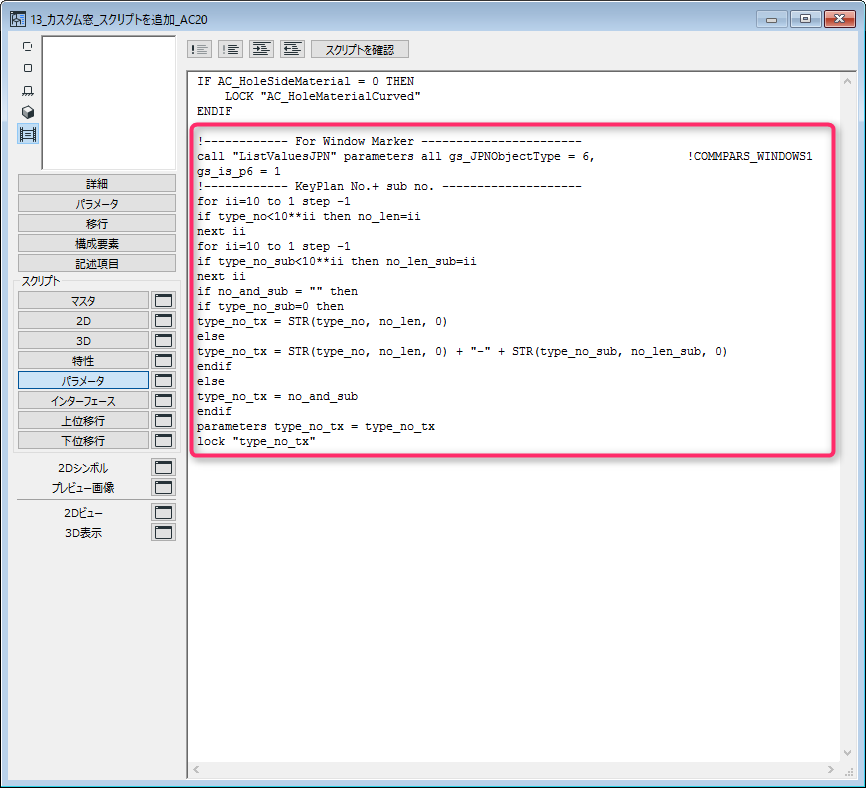

3.自作建具の「パラメータスクリプト」に以下のスクリプトを貼り付けます。
[窓のパラメータスクリプト]
!------------ For Window Marker -----------------------
call "ListValuesJPN" parameters all gs_JPNObjectType = 6, !COMMPARS_WINDOWS1 gs_is_p6 = 1 !------------ KeyPlan No.+ sub no. -------------------- for ii=10 to 1 step -1 if type_no<10**ii then no_len=ii next ii for ii=10 to 1 step -1 if type_no_sub<10**ii then no_len_sub=ii next ii if no_and_sub = "" then if type_no_sub=0 then type_no_tx = STR(type_no, no_len, 0) else type_no_tx = STR(type_no, no_len, 0) + "-" + STR(type_no_sub, no_len_sub, 0) endif else type_no_tx = no_and_sub endif parameters type_no_tx = type_no_tx lock "type_no_tx"
4.自作建具の「２Dスクリプト」に以下のスクリプトを貼り付けます。
窓の平面形状は、2Dスクリプト内に記述されている必要があります。2Dシンボルに記載されている場合は、2Dスクリプト内に記述してください。[窓の2Dスクリプト]

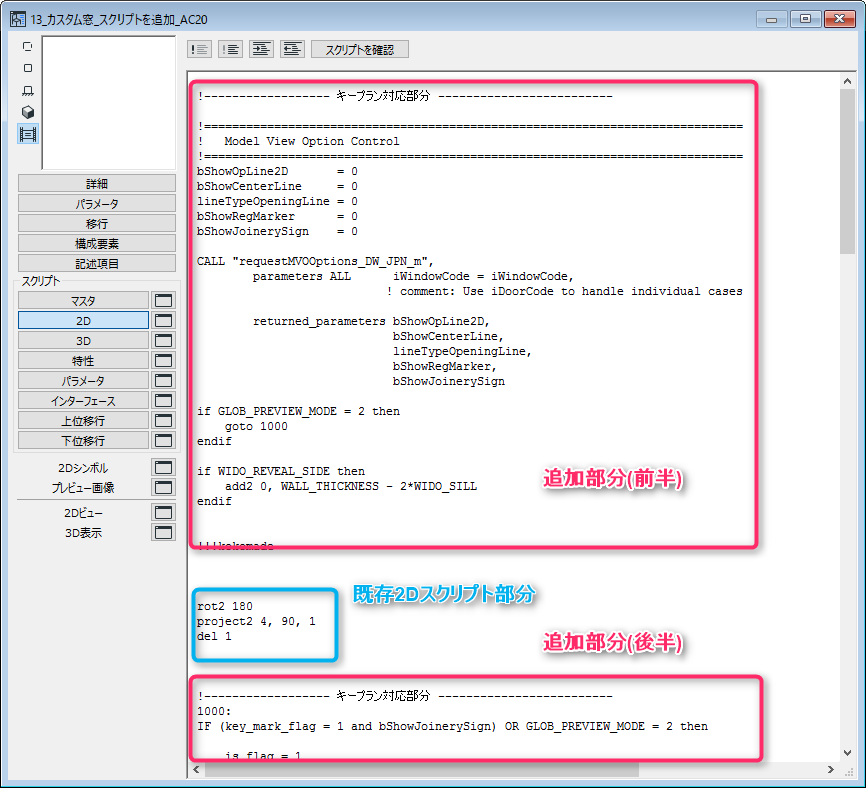

[追加部分(前半)]
!------------------ キープラン対応部分 -------------------------[追加部分(後半)]
!============================================================================= ! Model View Option Control !============================================================================= bShowOpLine2D = 0 bShowCenterLine = 0 lineTypeOpeningLine = 0 bShowRegMarker = 0 bShowJoinerySign = 0
CALL "requestMVOOptions_DW_JPN_m", parameters ALL iWindowCode = iWindowCode, ! comment: Use iDoorCode to handle individual cases
returned_parameters bShowOpLine2D, bShowCenterLine, lineTypeOpeningLine, bShowRegMarker, bShowJoinerySign
if GLOB_PREVIEW_MODE = 2 then goto 1000 endif
if WIDO_REVEAL_SIDE then add2 0, WALL_THICKNESS - 2*WIDO_SILL endif
!------------------ キープラン対応部分 ------------------------- 1000: IF (key_mark_flag = 1 and bShowJoinerySign) OR GLOB_PREVIEW_MODE = 2 then
is_flag = 0 goto "KeyPlan_Marker" else is_flag = 0 endif
END
"KeyPlan_Marker":
add2 0, WIDO_SILL
! ============================================================================= ! Symbol marker ! =============================================================================
if GLOB_PREVIEW_MODE = 2 then if fl_symbol then is_flag = 0 else is_flag = 1 endif endif
if GLOB_SCALE>50 then elong = WALL_THICKNESS/2 else elong = fgd endif
if GLOB_PREVIEW_MODE = 1 then tmp_elv = ac_sill_to_curr_story - ac_wall_elevation * sill_ref_wall - gap_level * (1 - sill_ref_wall) - WIDO_THRES_DEPTH else tmp_elv = WIDO_SILL_HEIGHT + (ac_wall_elevation - gap_level) * (1 - sill_ref_wall) - WIDO_THRES_DEPTH endif
if scale_link_label then if GLOB_SCALE > detail_high then marker_type =0 else marker_type =1 endif else if iKey_Mark_Type = 1 then marker_type = 0 else marker_type = 1 endif endif
CALL "AC14_symbol_marker" PARAMETERS k_dia = k_dia, \ k_line = k_line, k_lenb = k_lenb, k_lena = k_lena, k_lenc = k_lenc, fsize_flag = fsize_flag, fsize = fsize, k_notation1 =k_notation1, n_offx1 =n_offx1, n_offy1 =n_offy1, k_notation2 =k_notation2, n_offx2 =n_offx2, n_offy2 =n_offy2, k_notation3 = k_notation3, n_offx3 =n_offx3, n_offy3 =n_offy3, k_notation4 =k_notation4, n_offx4 =n_offx4, n_offy4 =n_offy4, pen_text = pen_marker, pen_symbol = pen_marker, pen_fill = keyplan_fill_pen, type_fill = keyplan_fill_type, keyplan_fill_bg_pen = keyplan_fill_bg_pen, fontType = fontType, type_symbol = stW_Type_Name, type_no = type_no_tx, globid = GLOB_ID, elong = elong, k_idflag = k_idflag, fill_flag = bKeyplan_fill, marker_type = marker_type,
op_elv = tmp_elv, op_height = B, is_flag = is_flag, ltype_marker = ltype_marker, k_rot=k_rot, wd_show_size = wd_show_size, size_anno_x = size_anno_x, size_anno_y = size_anno_y, A = A, !!--- new for paper scale V17 paper_scale = paper_scale, ex_fsize = ex_fsize, wd_fsize = wd_fsize, k_dia_paper = k_dia_paper, k_lenb_paper = k_lenb_paper, k_lena_paper = k_lena_paper, k_lenc_paper = k_lenc_paper,
n_offx1_paper = n_offx1_paper, n_offy1_paper = n_offy1_paper, n_offx2_paper = n_offx2_paper, n_offy2_paper = n_offy2_paper, n_offx3_paper = n_offx3_paper, n_offy3_paper = n_offy3_paper, n_offx4_paper = n_offx4_paper, n_offy4_paper = n_offy4_paper, size_anno_x_paper = size_anno_x_paper, size_anno_y_paper = size_anno_y_paper,
k_dia_M = k_dia_M, k_lenb_M = k_lenb_M, k_lena_M = k_lena_M, k_lenc_M = k_lenc_M,
n_offx1_M = n_offx1_M, n_offy1_M = n_offy1_M, n_offx2_M = n_offx2_M, n_offy2_M = n_offy2_M, n_offx3_M = n_offx3_M, n_offy3_M = n_offy3_M, n_offx4_M = n_offx4_M, n_offy4_M = n_offy4_M, size_anno_x_M = size_anno_x_M, size_anno_y_M = size_anno_y_M, !!------------------------------ k_rot_ang=k_rot_ang del top
