2D Elements in IFC Files - How to Do It?

Aaron Bourgoin
Advisor

Can anyone tell me how to include 2D lifework and objects in an IFC file. IFC 2x3 and forward is supposed to be able to do this, but I have had no luck.

Think Like a Spec Writer

AC4.55 through 26 / USA AC25-5010 USA

Rhino 7 Mac

MacOS 11.6.5
3 REPLIES 3

hybrid
Enthusiast

Hi. what do you mean when you say 2D elements? 2D symbols for windows and doors? or objects? if there are doors and windows, then turn on the checkbox in the translator. if there are 2D objects then this is impossible

AMD R7 2700 3.8@GHz | 32 Gb RAM | SSD | GTX 1050Ti

Laszlo Nagy
Community Admin
Community Admin

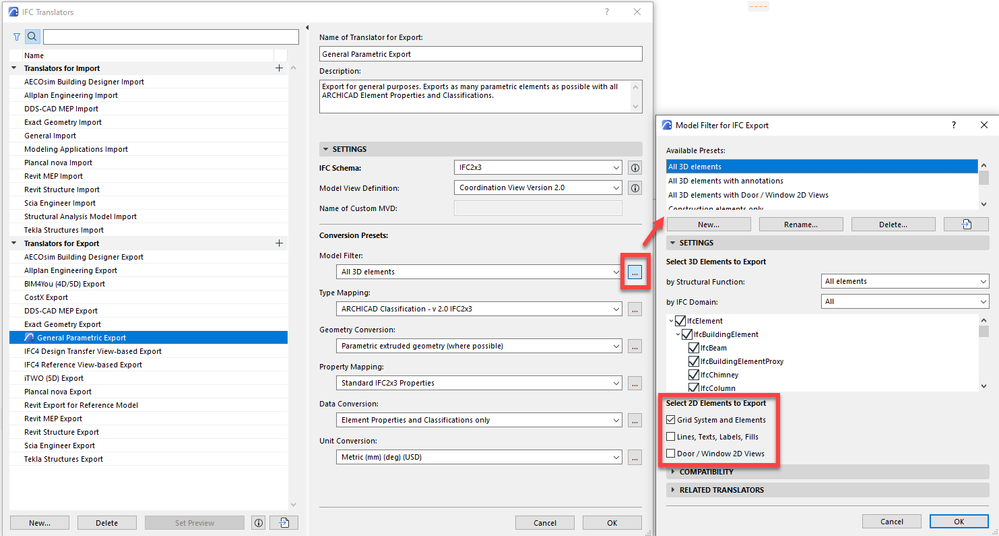

Aaron, the option marked in the screenshot are the ones I am aware of that export 2D elements as part of the IFC file. I have not tried it so if you do, I would be interested in the result.




....................................................................................................
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC26
Loving Archicad since 1995

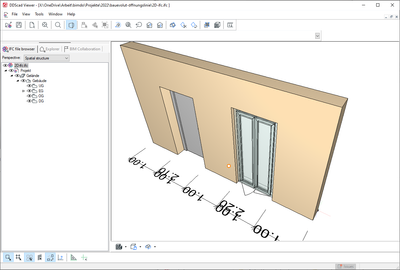

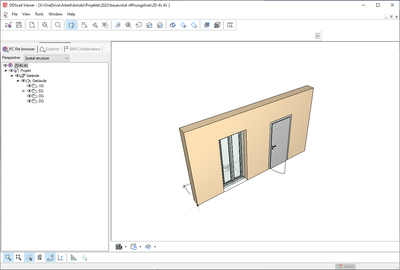

DdsViewer show the opening-lines

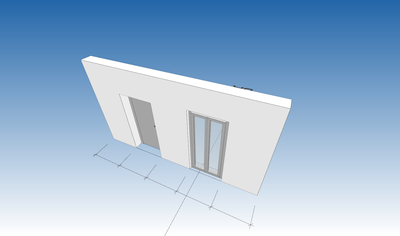

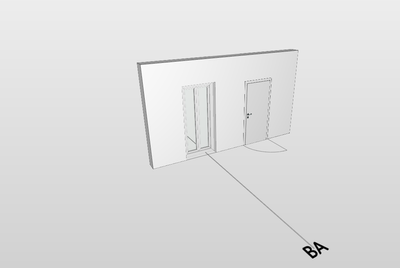

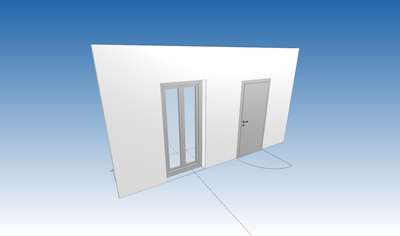

BIMCollab Zoom and Solibri only interpret the opening lines of the doors





Are there other ideas to put entities to the sash of a window, that we can represent the opening style in the model?
