DOOR SCHEDULE AND DOOR "TYPES".....need major help

rob2218
Contributor
I tell ya GS...these "schedules" whether they be "door types" or "door schedules" are the worst.

it's like I have NO clue how to get a simple "DOOR TYPES" with the door type letter (A, B, C, etc..) and by grouping the same "TYPE" of door whether it be a 2'-8" or 3'-0".....it's still a "B type" door......

and also, how to get that "door type" information to be coordinate inside the "DOOR SCHEDULE".....

I can't believe this is this hard to create and why something like this isn't a simple STOCK list in AC18.

Yes, there's a door types "list" but it doesn't work as it should.
In the U.S., "door types" means just that...."what type of door with a letter is represented in a door schedule and shown as a 2D in the "door types" chart.
....please..I need some help.
...Bobby Hollywood live from...

i>u

Edgewater, FL!

SOFTWARE VERSION:

Archicad 22, Archicad 23

Windows7 -OS, MAC Maverick OS
8 REPLIES 8

Steve Jepson
Advisor

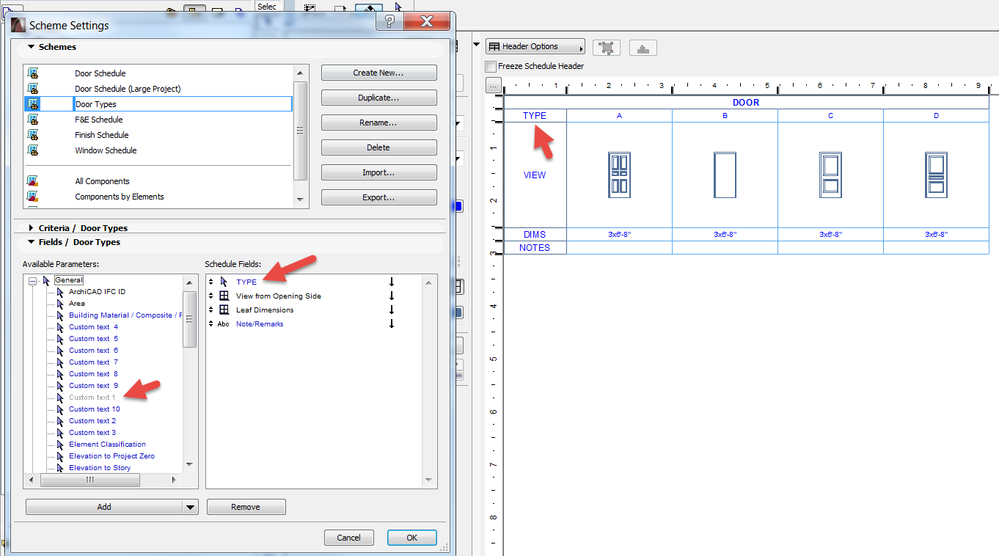

It looks to me like the simplest way to get the schedule to show a door TYPE in terms of A, B, C… and still maintain all of the parametric functionality you need for managing the door schedules, is to just add a Custom Text like this: (See picture)
