Collaboration with other software
About model and data exchange with 3rd party solutions: Revit, Solibri, dRofus, Bluebeam, structural analysis solutions, and IFC, BCF and DXF/DWG-based exchange, etc.

IFC rules

alemanda
Advocate
I'd like to define a new preset IFC rule creating new IFC properties and filling it with some preset data.
I saw some coding into the preset IFC rules defined in AC out of the box but I didn't find a "simple & readable" example of xml coding for new IFC properties.

For example I'd like to fill the field IFC "description" with a text using a custom made db properly coded as per IFC syntax

Is it possible?
Where can I find documentation on the IFC syntax and coding?

Thanks for any support

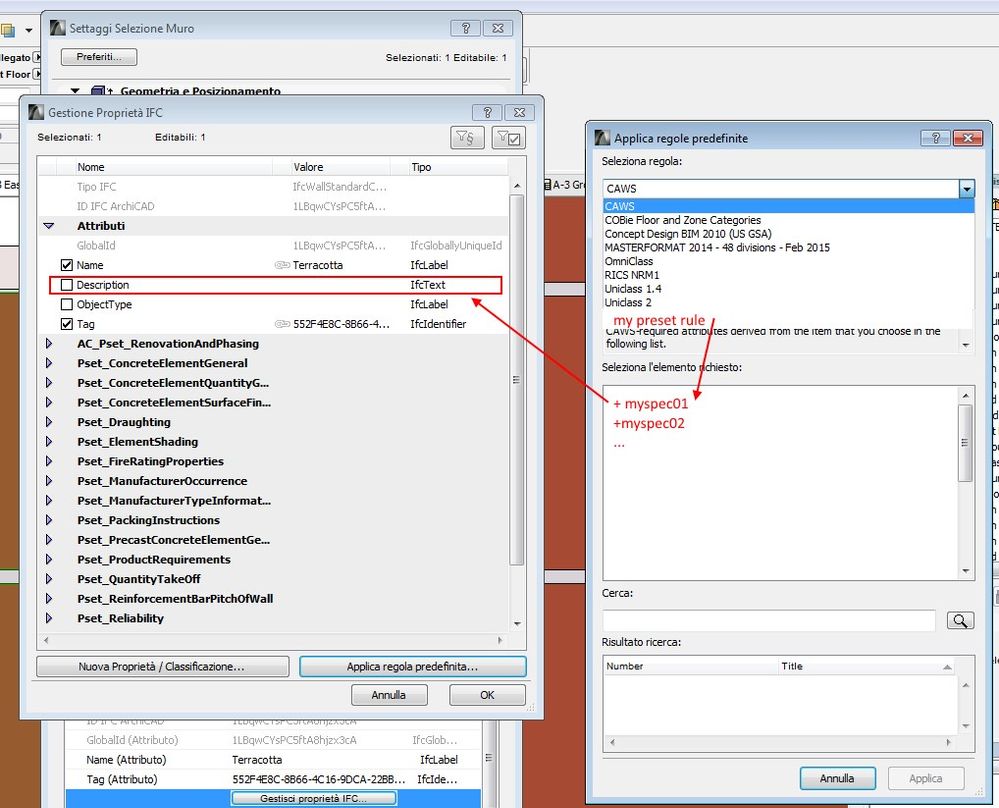

ifc new preset rule.jpg
AC 19 and AC21 latest hotfix
Win 10 Pro 64bit
Double XEON 14 CORES (tot 28 physical cores)
32GB RAM - SSD 256GB - Nvidia Quadro K620
Display DELL 25'' 2560x1440
www.almadw.it
