Multiple views per layout using Autosplit

Anonymous
Not applicable
Hello Brains Trust!

Is there a way to have more than one view per sheet using the auto-split (split drawing among multiple layouts)

My door type schedule, on an A1 sheet can accommodate 3 rows of the schedule - but I can't seem to add a new view (row) to the page other than a duplicate of the existing view.

i could do it all manually but then you lose the automatic finish and start co-ordination - which I like a great deal.

any ideas?
9 REPLIES 9
Anonymous
Not applicable
...Always with the hard questions!!
Guess the answer is 'No.'.
Barry Kelly
Moderator
It seems not.
You can restructure the table to manually spread it across the page which then wraps the schedule to fit the space you choose.
But if your schedule is still larger than the page you must duplicate it manually as you say and crop each drawing to show what you want.

As soon as you choose the option to "split among layouts" it converts the schedule back to a single row (or column) and then distributes that among the required number of new layout pages.

I would consider this a bug as I think it is not working as it should.

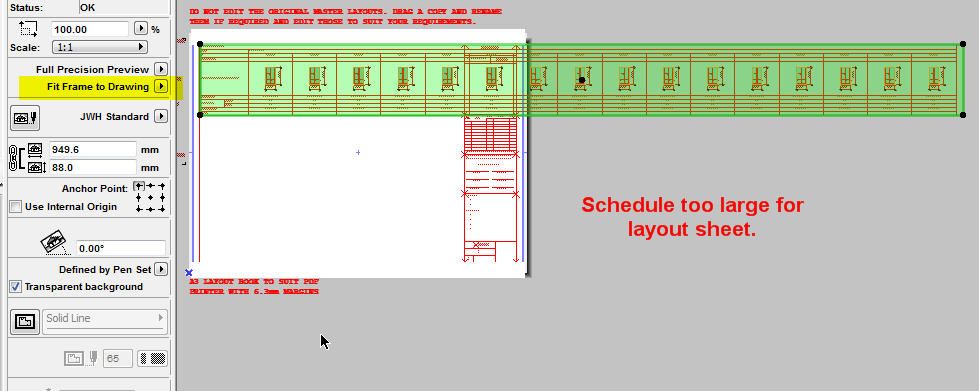

Some images for an explaination.
Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Barry Kelly
Moderator
Restructuring the table.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Barry Kelly
Moderator
Splitting among layouts.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Anonymous
Not applicable
Thanks Barry!

You illustrated the issue well.
I have not tried this in 16 yet but gather it's the same.

thanks for the attention - feel less solitary!
Barry Kelly
Moderator
That was 16 that I tried it in.
Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
nitizz
Participant
Barry wrote:
Splitting among layouts.

so all the split layouts keep same drawing number when you press next page?
how to make it sequence?
AC27 INT FULL

27-inch 2019 iMac Retina 5K 10.14.6 macOS Mojave

3.6 GHz Core I9 Radeon Pro 580X 8GB

www.rethinkstudio.mu
Anonymous
Not applicable
So this annoyance is the same in 17 as far as I can tell as well. . .
davidstonearchicad21
Contributor
This issue persists in AC21!
