Window Schedule - how to extract a label tag and add to sch?

rob2218
Booster
see attached.
...Bobby Hollywood live from...

i>u

Edgewater, FL!

SOFTWARE VERSION:

Archicad 22, Archicad 23

Windows7 -OS, MAC Maverick OS
8 REPLIES 8

Eduardo Rolon
Moderator
If I understand correctly:

1. The Tag is reading a parameter applied to the window
2. That Parameter is not in the Basic Schedule List

then

1. In the Schedule List select ADD triangle and select Object Parameters
2. In the List go to Archicad Library and look for Openings
3. Select the specific window type (though it does not matter) and look for the parameter.
4. Use add for the list.
eduardo rolón AIA NCARB
Another of the forum moderators.
Macbook Pro M1 Max 64GB ram
OS X 10.XX latest
AC25 US/INT -> AC08

Eduardo Rolon
Moderator
the list
Screen Shot 2014-04-17 at 9.57.15 AM.png
eduardo rolón AIA NCARB
Another of the forum moderators.
Macbook Pro M1 Max 64GB ram
OS X 10.XX latest
AC25 US/INT -> AC08

rob2218
Booster
see attached.
...Bobby Hollywood live from...

i>u

Edgewater, FL!

SOFTWARE VERSION:

Archicad 22, Archicad 23

Windows7 -OS, MAC Maverick OS

Eduardo Rolon
Moderator
Try selecting another window type that has the parameter. If it works then in the Schedule you can add the exceptions like the Empty Opening. The other option is to see if it is in the IFC list.
eduardo rolón AIA NCARB
Another of the forum moderators.
Macbook Pro M1 Max 64GB ram
OS X 10.XX latest
AC25 US/INT -> AC08

rob2218
Booster
SEE ATTACHED.

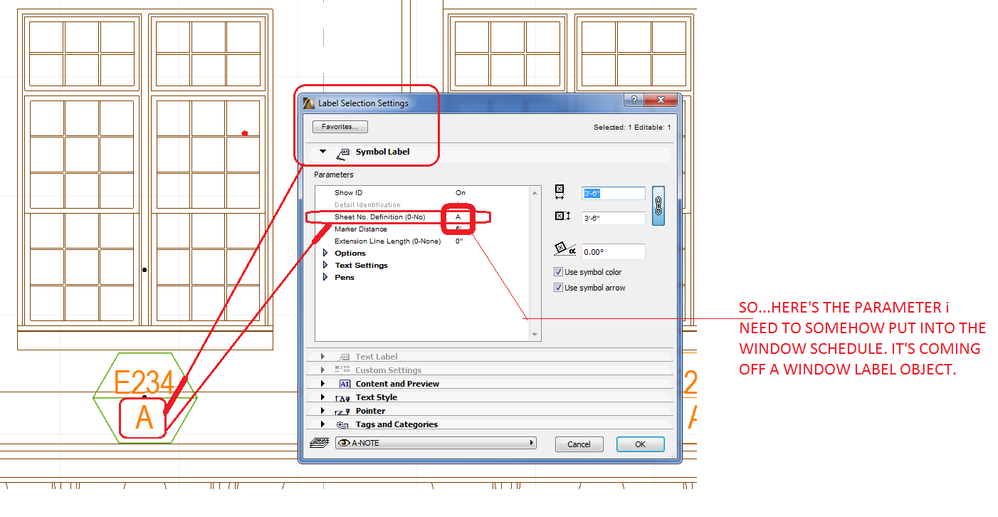

the window label has a variable in it.
still unsure/unclear how do I get this particular variable 'into' the schedule.
i'm having a tough time finding where this variable is relative to the object.
...Bobby Hollywood live from...

i>u

Edgewater, FL!

SOFTWARE VERSION:

Archicad 22, Archicad 23

Windows7 -OS, MAC Maverick OS

Eduardo Rolon
Moderator
Try here, though I think you will need to add the label to the windows in plan since I don't think that AC will be able to read them from sections Elevations, hope I am wrong.
Screen Shot 2014-04-17 at 11.04.02 AM.png
eduardo rolón AIA NCARB
Another of the forum moderators.
Macbook Pro M1 Max 64GB ram
OS X 10.XX latest
AC25 US/INT -> AC08

rob2218
Booster
geez....and this office I work at does NOT show the window tags in plan. Dunno know bout the rest of you but....in my 30+ years of practicing architecture....I've 'mostly' seen the windows and door tags "IN" plan and rarely have seen them in elevations.....but hey, as the man once said........."he who has Gold Rules..."
ejrolon wrote:
Try here, though I think you will need to add the label to the windows in plan since I don't think that AC will be able to read them from sections Elevations, hope I am wrong.
...Bobby Hollywood live from...

i>u

Edgewater, FL!

SOFTWARE VERSION:

Archicad 22, Archicad 23

Windows7 -OS, MAC Maverick OS

Eduardo Rolon
Moderator
You can place the tags on plan on a hidden layer.
eduardo rolón AIA NCARB
Another of the forum moderators.
Macbook Pro M1 Max 64GB ram
OS X 10.XX latest
AC25 US/INT -> AC08
