Archicad 17: Morph as Massing Model

David Collins
Advocate
I've been trying to use the new massing model features of the morph tool in ArchiCAD 17, as shown in the "BIM lives in the Details" webinar.

My problem is that there doesn't seem to be a pre-configured "Mass schedule" in the list of interactive schedules provided and (blush) I have no idea how to go about creating one. Can someone give me a few hints ?

Oh, And GS, are you guys sure about that Mies quote...?
David Collins

Win10 64bit Intel i7 6700 3.40 Ghz, 32 Gb RAM, GeForce RTX 3070
AC 27.0 (4001 INT FULL)
4 REPLIES 4
Laszlo Nagy
Community Admin
Community Admin

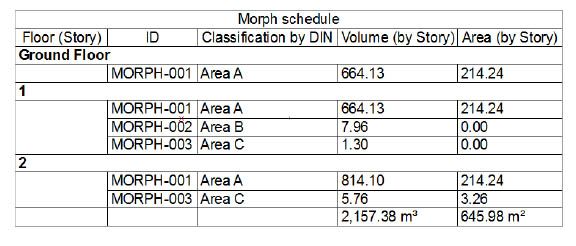

Set the Fields to something like that in the attached image.
Also, when the schedule is generated, check the "Show Headline" checkbox in the Options panel to the left side of the schedule. Then the Home Story column will act as a Headline.
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
David Collins
Advocate
laszlonagy wrote:
Set the Fields to something like that in the attached image.
Thanks Lazlo. That'll get me started. Also, thanks for moving this into "Schedules" section which I never noticed before. Lists, Schedules and Calculation in general traumatized me so badly back in ArchiCAD 8.0 I seem to have blocked them out altogether....
David Collins

Win10 64bit Intel i7 6700 3.40 Ghz, 32 Gb RAM, GeForce RTX 3070
AC 27.0 (4001 INT FULL)
Laszlo Nagy
Community Admin
Community Admin
Hopefully some successes will get them "unblocked" for you.
Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
David Collins
Advocate
I just found the tutorial on this, hiding waaay down at the bottom of the ArchiCAD 17 "3D workflow improvements" webpage. "Conceptual Design Related Improvements"

http://www.youtube.com/watch?v=otRbh6ZuYv0
David Collins

Win10 64bit Intel i7 6700 3.40 Ghz, 32 Gb RAM, GeForce RTX 3070
AC 27.0 (4001 INT FULL)
