2D Fill overlap? Help?

JGoode
Advocate

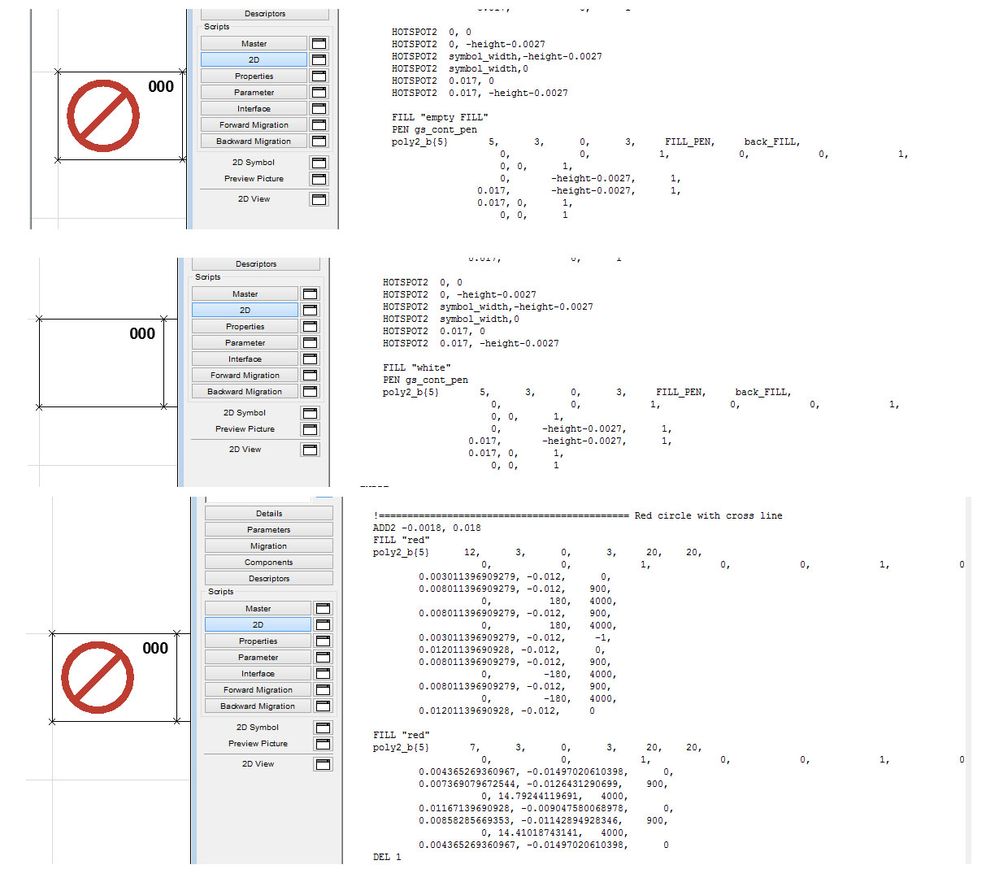

In the top part of the image you can see with FILL "EMPTY FILL", it is transparent but as soon as it is replaced with anything else then the second part of the image happens. The red symbol is written in the script before the fill is. The bottom image is the red symbol code. How can I move the fill behind the red symbol?

Thanks

2D overlapping fill example.jpg
ArchiCAD 23

Windows 10
3 REPLIES 3
sinceV6
Advocate
Hi.
You can either use DRAWINDEX or change the order in which things are scripted (i.e. bottom fill first)

Best regards.
Barry Kelly
Moderator
Or is it just a case that your 'back_FILL' parameter is not set to the transparent (0) pen?

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
JGoode
Advocate
Barry wrote:
Or is it just a case that your 'back_FILL' parameter is not set to the transparent (0) pen?

Barry.
I have solved it now. DRAWINDEX worked nicely, thanks.
