Design forum

Creating this kind of curtain wall and window

Anonymous
Not applicable

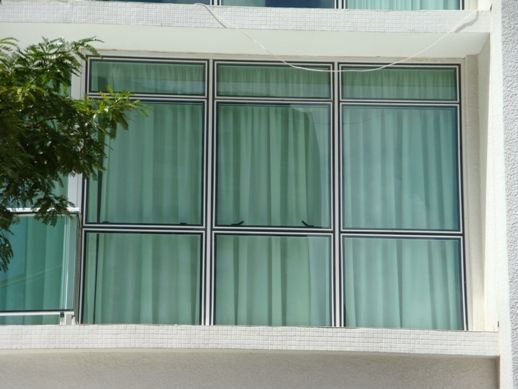

How can I create this kind of structure in a curtain wall and in a window ??
Thankss
4 REPLIES 4

Ralph Wessel
Mentor
fabricfo wrote:
How can I create this kind of structure in a curtain wall and in a window ??
Thankss
Is something like the attached image OK?
Ralph Wessel BArch

Anonymous
Not applicable
yes Ralph... that's it... but the middle white strip is thinner...
how did you do that??
is it possible to use it in a curtain wall???
Thanks

Ralph Wessel
Mentor
fabricfo wrote:
yes Ralph... that's it... but the middle white strip is thinner...
how did you do that??
is it possible to use it in a curtain wall???
Take a look at this discussion: Modular Joinery

To construct this window (referring to the attached image):
  • 1) You could start by selecting a similar window from the preset types, but start with one opening. Configure the single opening as required, and all other opening added later will default to the same.
    2) Set the frame type for the middle/bounding bar
    3) Select the opening itself and set the sash/rail size and type as required
    4) Set the frame size, the bounding size of the whole window (and lock), and specify a 3x3 grid.
    5) Set the size of the rows/columns as required
    6) The finished item
Contact your local reseller/distributor about this object (which they can obtain from GS UK). I can't comment on how easily windows can be connected with curtain walls - anyone else have input here?
