Hi, I'm trying to figured out how to make properly profiles for facades walls - which they have a gabs or some 3D textures

- Profile manager it's seem that can do profile only : TopSurface and after this profile I can use it for FrontSurface - Not like SideSurface

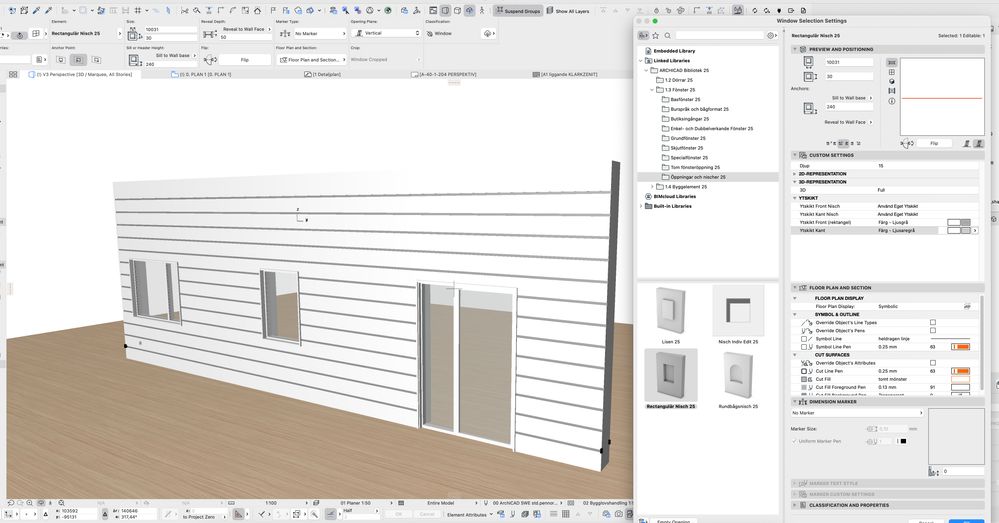

- Also tried to do this troughs NISH window object - It's do very well but it not easy to change "parametrically" ( Also it's too many windows in the wall after )

Skärmavbild 2022-04-19 kl. 10.16.01.jpg

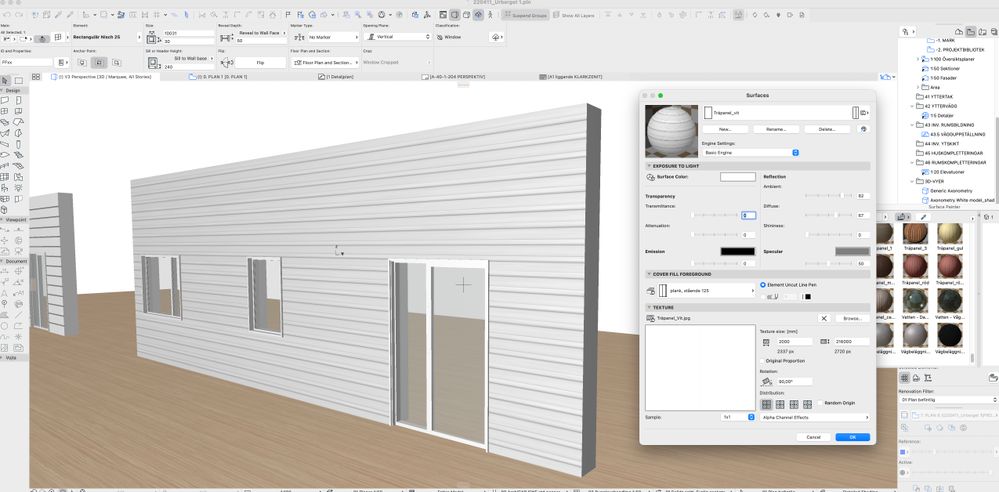

- I tested also Texture and it do very well just it's so flat and any change is not exactly and reUplouding Libraries is little pain 😕
Skärmavbild 2022-04-19 kl. 10.17.33.jpg

- Solid operations tools is also working but it's annoying work with it ( hiding layers ...)

Skärmavbild 2022-04-19 kl. 10.18.55.jpgSkärmavbild 2022-04-19 kl. 10.19.06.jpg



- Last what I know is using CurtainWalls but they are so heavy for projects and I want to combine  with windows and doors from the wall. this tool is not my favorit too



•  Is there something how to do it more simple or easier ?
• I'm looking for something solid operation tool but what it give me FrontSurface to profile my Walls
• Can I use it PARAOM for this ?

I hope you understand what I want is quite hard to explain 😇 I wanna do just Wall but with 3D texture and right now I will be very happy if I can do just some Lines / gabs in the walls but be able to applicate for whole house with possibilities to change dimension/positions of gabs

AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4
11 REPLIES 11

ryejuan
Expert

Hi, you can refer to this topic it might help you. 😎



https://community.Graphisoft.com/t5/What-s-new/split-face-on-exterior/m-p/326310/highlight/true#M918

In the end what is your Objective?
ArchiCAD 9 onwards

Thank you wery good solution 👍


Just one question:

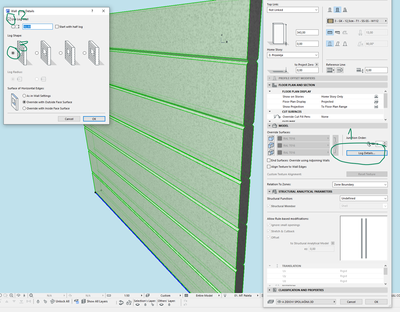

- If i work in Profile manage I'm drawing Side plane of Wall.
