Generate beams from an autocad Structure file using Grasshopper connection

bouhmidage
Advisor

Helle,

I'm exploring some advanced grasshopper usage,

i'm trying to automate the translation of a DWG structure file to a 3D model,

i suppose that i have a structure file ( DWG )

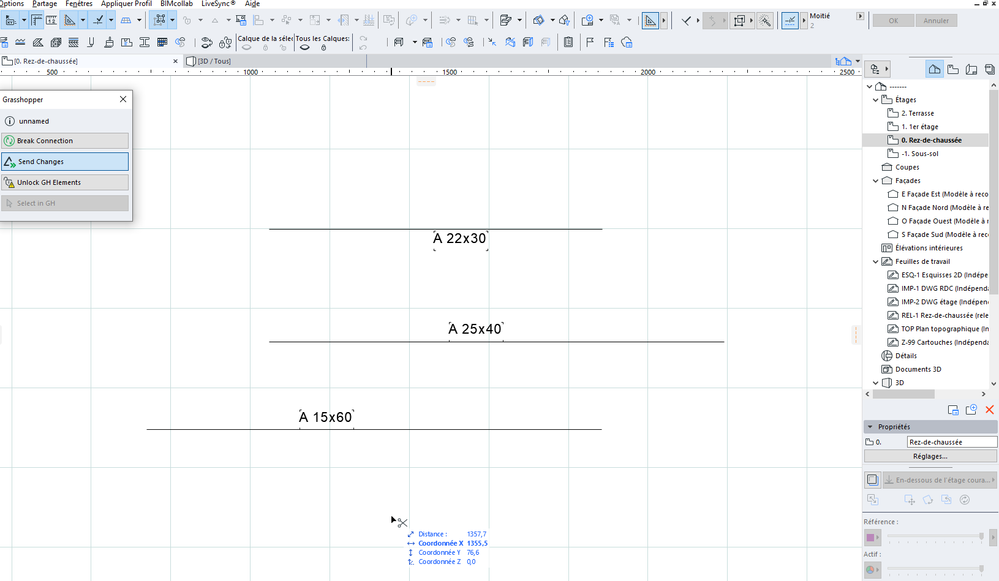

* Beams are represented with centerline + text that indicates beam section dimension,



i keep only centerline and text visible,

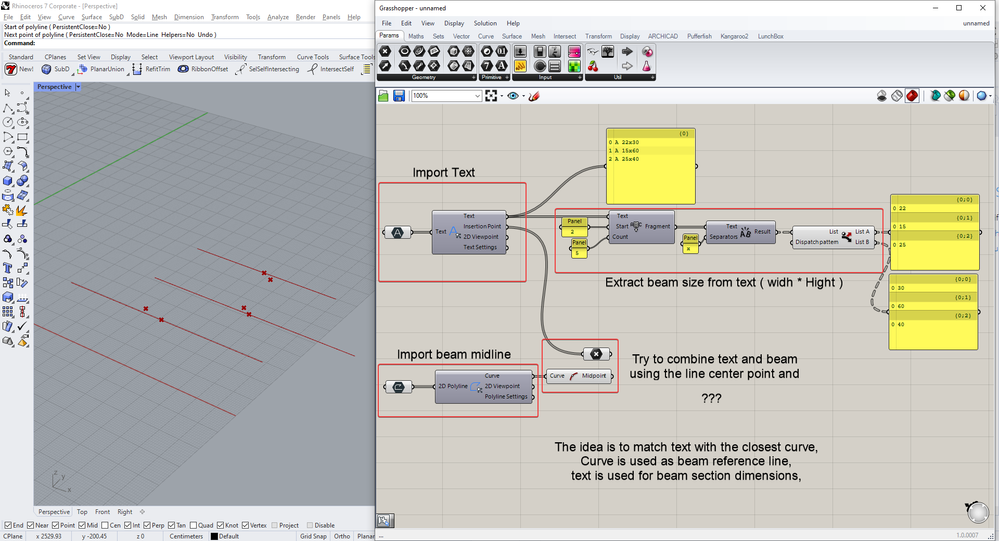

Select all text and import in grasshopper,



Select all centernlines and import in grasshopper,



Is there a way to match text with lines in grashopper ?



this may be usefull for big projects, to automate some work.



Thanks

AMD Ryzen 9 3900X, 32 GB RAM, RTX 3080 10 GB
Archicad 25
Windows 10 professional
