I want to make sure that the shape of the complex wall does not change even if the height of the wal

LeeJaeYoung
Virtuoso

I want to make sure that the shape of the complex wall does not change even if the height of the wall changes... It's not going well. If there is any control such as angle, I'll try it... ㅠㅠ

I'd appreciate it if you could let me know.







AC27 on window 11
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

Yes you can.

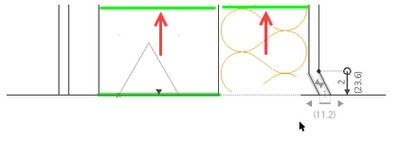

You can add modifiers to the top of the skins so you can increase the height that way by stretching the individual skins.




Or you can set the 'height stretch' so that only a portion of the wall stretched as you adjust the overall height of the wall.






This way the angled portion at the bottom will remain unchanged.



Barry.



One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

6 REPLIES 6

Complex profile walls are constant in width and height otherwise you use offset modifiers that let you control which skin to resize horizontally or vertically depending on modifiers you set, so if you like to get the wall adjusted to floor height or whatever don’t use offset modifiers.

AC 27 INT 5003 - AC 26 INT 6019 ( For MEP Purposes )
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

It is not accurately translated whether it is saying yes or no.
To use the author translate.google.com...



"You have to build walls by height." I mean

AC27 on window 11
Barry Kelly
Moderator

The modifiers can not change the angles of any skins.

They will simply extend the shape of the polygon (skin) extending on the same angle as the original side.



Unfortunately it is not possible to modify the position of one node only.

Edges only can be modified and they will simply extend the adjoining edges in the same direction that they are already in.

It is the same if you extended the edge of a fill in plan.








Barry.



One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Are you saying that you can't make a lower part that doesn't change even when the height of the wall changes like I wanted?

AC27 on window 11
Solution

Yes you can.

You can add modifiers to the top of the skins so you can increase the height that way by stretching the individual skins.




Or you can set the 'height stretch' so that only a portion of the wall stretched as you adjust the overall height of the wall.






This way the angled portion at the bottom will remain unchanged.



Barry.



One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thank you so~~~~~~~~~~~so much ^^

AC27 on window 11
