Join walls at a corner

Not applicable

I have searched around to try to find the answer, but can only find far more complex issues. I have two walls that meet at a corner, and ArchiCAD has not joined them. I want to join them. They are the same type, height and thickness. I just want them joined to form a corner, rather than having them as two overlapping walls. I've tried dragging the walls away then back again, hoping ArchiCAD realises they can't physically occupy the same space, but no, ArchiCAD's too stupid for that. Design > Complex Profiles > Merge walls does nothing (not even an error message, just absolutely nothing. Useless). As far as I can tell, this is for merging walls next to/parallel to each other anyway.

The ArchiCAD help goes on for pages about connecting differing walls in complex situations, but I want an equivalent of AutoCAD Achitectural Desktop's simple T-wall join or L-wall join thing which was incredibly easy (and that was about 8 years ago - the last time I used that (far superior) program).

Any help would be greatly appreciated. Please!

Stress Co_
Select walls and use the intersect command.
Edit> Reshape> Intersect.

Also, for future walls, turn on Auto Intersection.
Options> Auto Intersection
Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina)
Processor: 3.6 GHz 8-Core Intel Core i9
Memory: 48 GB 2667 MHz DDR4
Graphics: Radeon Pro 580X 8GB
ArchiCAD 25 (5010 USA Full)

Not applicable
THANK YOU! I was going slightly mad trying to figure that out!

I really should go through some tutorials, but all I want to do is produce some drawings for my builder who starts work tomorrow with nothing but a few verbal instructions so far. I need to get something on paper ASAP before he starts pulling walls down!

Not applicable
Also check that your wall layers have an Intersection Priority number of at least 1 (in Layer Settings). If Int Priority is 0 they will not join.

Tip - all wall layers that are OFF in current layer combination should have Int Priority of 0 so they don't interact with walls that are ON.

Masa CB

Hello, i am having a problem with the educational version.

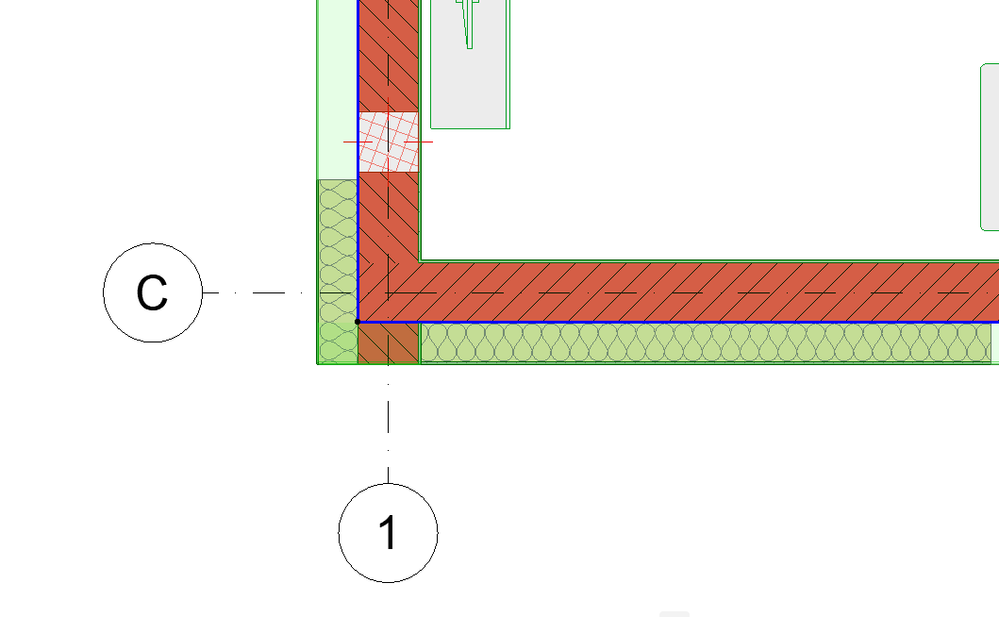

When trying to connect two walls in a corner, one of them overlaps the other, rather than joining together. I have tried many things, but cannot seem to get it to work. Any help would be much appreciated.
