Measuring measured items don't agree

Eric Milberger
Enthusiast

I measured between wall - then I measured the measurement

AND they are 1" different????  HELP Please as this is not a good start




Eric Milberger, Architect | Master Planner
Archicad 25
AecoSim
Microstation
Windows 10 64bit

Remote - i7-8550U CPU @ 1.80GHz, 2001 Mhz, 4 Core

Office - Processor i7-8700K CPU @ 3.70GHz, 3696 Mhz, 6 Core
8 REPLIES 8

Eric Milberger
Enthusiast

I did make sure that I had no fractions in my setup.

Eric Milberger, Architect | Master Planner
Archicad 25
AecoSim
Microstation
Windows 10 64bit

Remote - i7-8550U CPU @ 1.80GHz, 2001 Mhz, 4 Core

Office - Processor i7-8700K CPU @ 3.70GHz, 3696 Mhz, 6 Core

Rajesh Patil
Advocate

Are you trying to compare between the background CAD file and Archicad drawn elements? Is the background file is image or CAD file attached as Xref?

Rajesh Patil
AC 09-25 | INT | WIN11 64
Dell Inspiron 7591, Core i9, 9880H 2.30GHz, 16.0GB, NVidia GeForce GTX1650, 4.0GB, SSD Internal 500GB, Dell SSD External 250GB

Eric Milberger
Enthusiast

NO

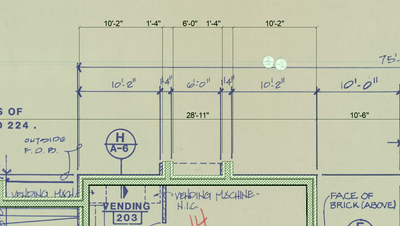

The background is there but I am comparing two dimensions.
