Model an arched roof.

Tom Krowka
Booster

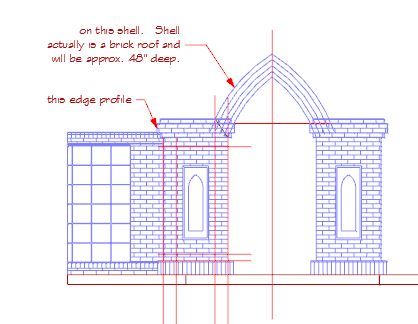

What is the best way to model this brick arch (roof)
See pic below.

I thought an arched beam would be great but apparently can't do one. Shell with a custom edge? Not sure how to do that either.

Extrude a custom beam profile....maybe that's it.
Tom Krowka Architect

Windows 10, AC Version 25

Thomas@wkarchwk.com

www.walshkrowka.com
2 REPLIES 2

Barry Kelly
Moderator
Model it laying down flat on the ground with a complex profile wall.
You'll get the profile you want, you can curve the wall to suit the arch and the top will mitre.
Then save as a morph, rotate and move into position.
As a morph you can then edit it further if you need.

Barry.

One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

I remember a video tutorial from shell tool making those kind of arches with a shell SEO (hidden afterwards).

Yep: http://youtu.be/5R_l7GlRAsk
Erwin Edel, Project Lead, Leloup Architecten
www.leloup.nl

ArchiCAD 9-24 NED FULL
Windows 10 Pro
Adobe Design Premium CS5
