NGVD with Story Levels

Cheikh T Sylla
Newcomer
Is there a way to set the North American Vertical Datum (NGVD) in Archicad so Archicad can show the NGVD level with the story levels? Or is the manual approach the only way? The NGVD is similar to the mean sea level datum. Thanks.
Cheikh T. Sylla, AIA, NCARB
SYLLA International, Inc.
USA
AC 24 USA - Intel Core i7-4700MQ 2.40 GHz - 8.00 GB RAM - 64-bit OS - Windows 10
9 REPLIES 9

Laszlo Nagy
Community Admin
Community Admin
I think this would only be possible by modifying the built-in Story Marker.
You can define a new Reference Level, name it N.V.G.D. Then in the Story Marker settings you can set the Reference Level parameter to this value. However, the Story Marker is currently scripted to display only one value above the Story line, you would have to modify the script so you can compose it from various values.
....................................................................................................
Laszlo Nagy, Lead Moderator, Community Admin
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, NVidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC25
Loving Archicad since 1995

Cheikh T Sylla
Newcomer
Thanks.
Cheikh T. Sylla, AIA, NCARB
SYLLA International, Inc.
USA
AC 24 USA - Intel Core i7-4700MQ 2.40 GHz - 8.00 GB RAM - 64-bit OS - Windows 10

Cheikh:

Another option is to use the Dimensioning Tool with the Elevation construction method, which allows multiple references in the marker text. But this is not automatic, you have to place dimensions to the model (I usually dimension to the floor slabs which follow the story heights).

David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC24 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.14.6

RandyC
Booster
the elevation tool from Masterscript might help.




http://www.masterscript.nl/epages/78066077.sf/en_GB/?ObjectPath=/Shops/78066077/Products/33
ArchiCAD 4.5 --- 25 , Win 10 , dual monitors, 64 gb ram,Nvidia GeforceRTX 2080 TI, I-9

Cheikh T Sylla
Newcomer
David,

That is quite a neat tool. I saw it on some construction documents but did not know about it. I am wondering if the elevation dimensioning could be set to a datum value, but I assume that even if it could, it would affect the story markers as well. Thanks for the tip.
Cheikh T. Sylla, AIA, NCARB
SYLLA International, Inc.
USA
AC 24 USA - Intel Core i7-4700MQ 2.40 GHz - 8.00 GB RAM - 64-bit OS - Windows 10

Cheikh T Sylla
Newcomer
Randy,

Thanks. That is a neat tool also. I will check it out.
Cheikh T. Sylla, AIA, NCARB
SYLLA International, Inc.
USA
AC 24 USA - Intel Core i7-4700MQ 2.40 GHz - 8.00 GB RAM - 64-bit OS - Windows 10

Cheikh wrote:
I am wondering if the elevation dimensioning could be set to a datum value, but I assume that even if it could, it would affect the story markers as well.

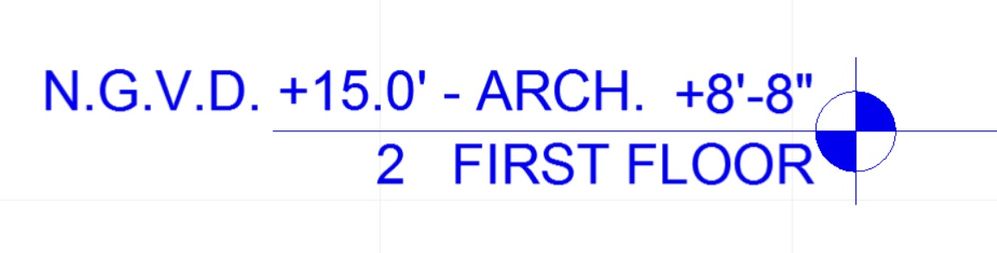

The Dimension Tool allows more than one datum to be used, but will display the same Dimension setting (your example has both decimal feet and feet & inches). It also cannot have multiline text, so will not do everything in your illustration, but will show the correct datum when these values change.

David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC24 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.14.6

Cheikh T Sylla
Newcomer
David,

That is a great hidden dimensioning tool that gives me what I needed. Even if one has to enter the text info manually, once done it shows both elevations values. Thank again so much.
Cheikh T. Sylla, AIA, NCARB
SYLLA International, Inc.
USA
AC 24 USA - Intel Core i7-4700MQ 2.40 GHz - 8.00 GB RAM - 64-bit OS - Windows 10

Cheikh:

Glad that that solution worked for you.

David
David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC24 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.14.6
