Personal drawing title (layout)

Hi,

Is it possible to create my own personal drawing titles?

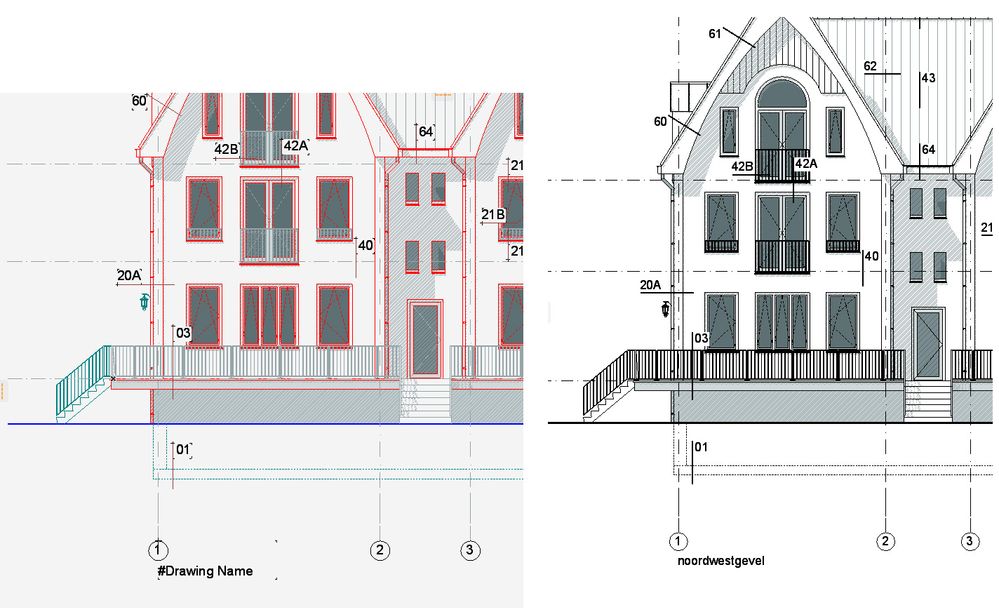

I just want a drawing title shown on the right site of this picture. I always have to change it manually. It's not possible to change it in the drawing selection settings.

thanks for the help.

Charlotte
Charlotte Vanparys / Architect
www.archid.be
AC18 5100 NED FULL • iMac 2.8GHz | 8 gb ram • OSX10.9.5
AC19 4011 NED FULL • iMac 3.3GHz | 16 gb ram • OSX10.11.1 El Capitan
8 REPLIES 8

Hoi Charlotte,

We never use the titles and just use text instead in the views.

You can insert autotext for Drawing ID, Drawing Name, Drawing Scale etc etc

Might not be what you are looking for, but we got annoyed by the drawing title limitations as well and this workaround works well for our layouts. Maybe it works for you
Erwin Edel, Project Lead, Leloup Architecten
www.leloup.nl

ArchiCAD 9-24 NED FULL
Windows 10 Pro
Adobe Design Premium CS5

DGSketcher
Virtuoso

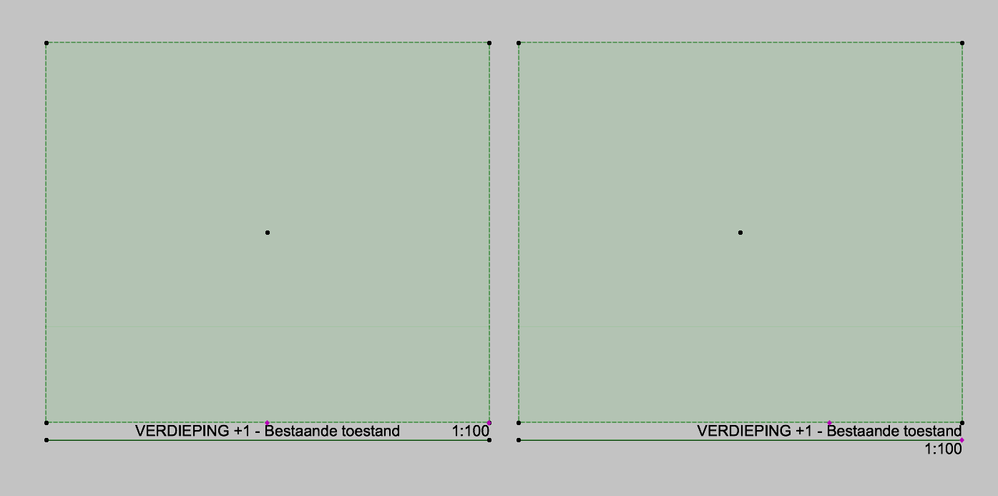

Have you looked at the drawing title options? I have a selection included with AC19 that includes "Linear Drawing Title 19" which looks exactly like the one on the right.

The standard titles are quite flexible.

At an advanced level you can create your own but I have never found a need so I can't help you with it. I'm guessing it would require a knowledge of GDL...
Apple iMac macOS Big Sur / AC24UKI (most recent builds)

Thx for the suggestions!
GDL-knowledge is to difficult for me.
But I alsof have a lineair title, I'll try that one
Charlotte Vanparys / Architect
www.archid.be
AC18 5100 NED FULL • iMac 2.8GHz | 8 gb ram • OSX10.9.5
AC19 4011 NED FULL • iMac 3.3GHz | 16 gb ram • OSX10.11.1 El Capitan

s2art
Newcomer

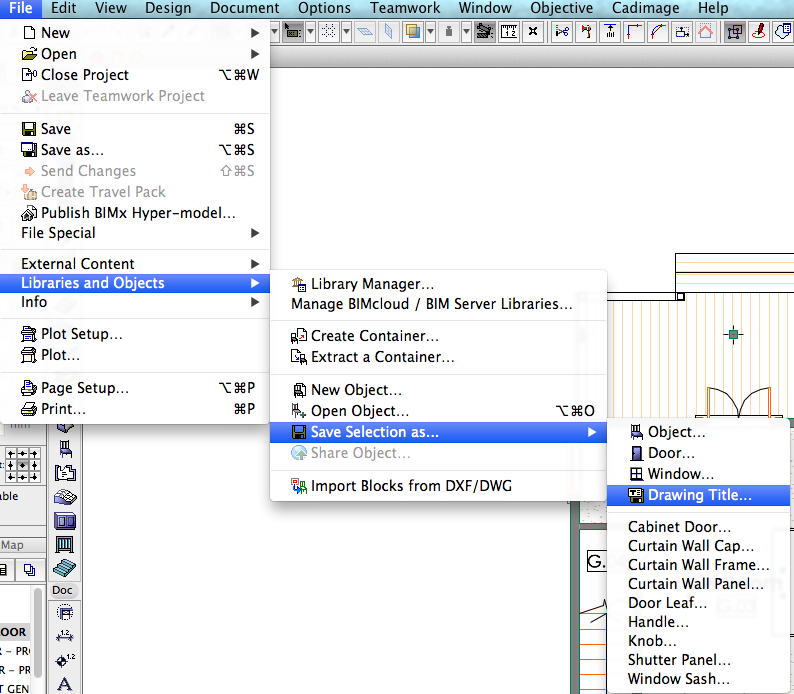

You don't have to know GDL. Set up text and lines etc. the way you want to see it (in a 1:1 view might be best), using Autotext for Drawing Name, number, scale, whatever you need. Select the elements and go to File> Libraries and Objects> Save Selection As> Drawing Title, and you have your very own title for use at any time.
S t u a r t . R o s e
PAUA Architects
AC22 6025 NZE
iMac Retina 27inch
3GHz Intel Core i5, 32GB 2667 MHz DDR4

DGSketcher
Virtuoso
That's a bit simpler than the label tool ! Thank you Stuart.
Apple iMac macOS Big Sur / AC24UKI (most recent builds)

That to me looks like the best solution Stuart.
Just one problem, where to find autotext ?
THX!!
Charlotte Vanparys / Architect
www.archid.be
AC18 5100 NED FULL • iMac 2.8GHz | 8 gb ram • OSX10.9.5
AC19 4011 NED FULL • iMac 3.3GHz | 16 gb ram • OSX10.11.1 El Capitan

DGSketcher
Virtuoso
Click to create your text object. When the text window opens the second button from the left in the menu bar has an "A" with a couple of "rotating" arrows, click that and select your required autotext.
Apple iMac macOS Big Sur / AC24UKI (most recent builds)

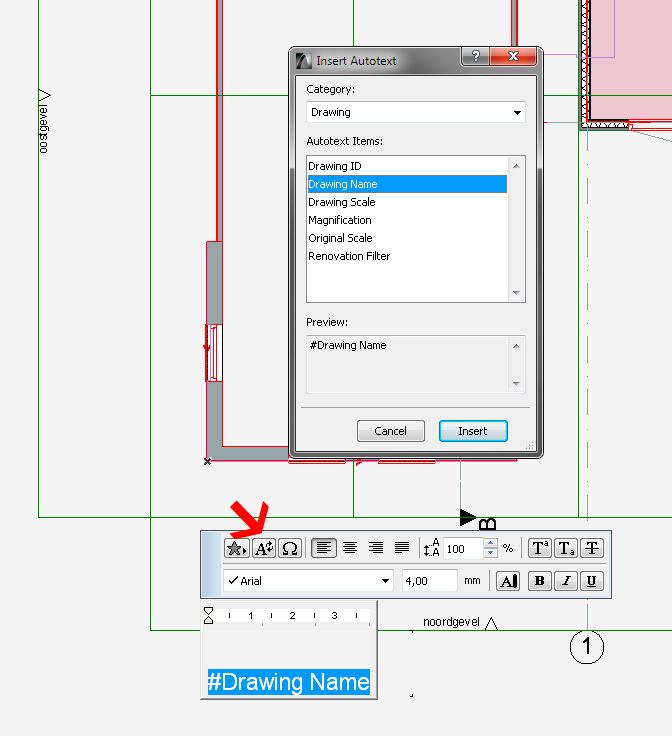

Or to put it into picture.
Erwin Edel, Project Lead, Leloup Architecten
www.leloup.nl

ArchiCAD 9-24 NED FULL
Windows 10 Pro
Adobe Design Premium CS5
