Problem with projection 2d in composite wall

Mario Sacco
Booster

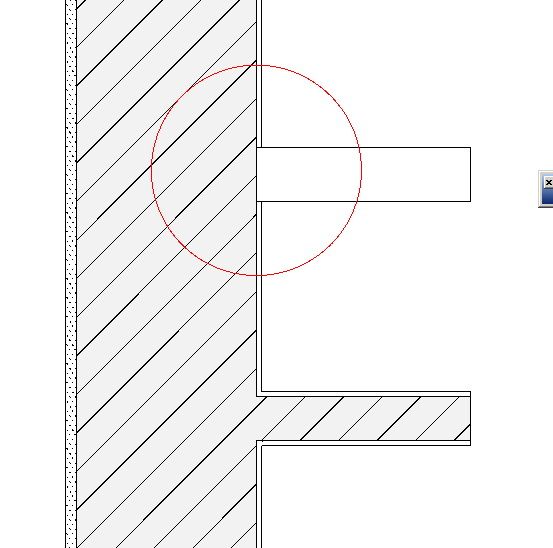

when I have a lower interior wall represented as projected in floor plan, the intersection is incorrect.
Mac Power Book M1 Max 64GB- OS X 12.2.1 - Archicad 25


www.studioarcrea.com

www.facebook.com/3DMD.3DMediaDesign
6 REPLIES 6

Link
Expert
Can you change the layer intersection priority number so that it doesn't try to join? If that solves it just remember that you'll need to update all of your layer combos with this new setting.

Cheers,
Link.

Marton Kiss
Graphisoft
Graphisoft
mariosmic wrote:
when I have a lower interior wall represented as projected in floor plan, the intersection is incorrect.
What are the priorities set for each Building Materials that are in use? I tried to re-create a similar situation, where the wall intersects with a core of the wall, but when I set it to end under the cut plane, the representation showed up correctly.

Marton
Marton Kiss
Director, Global Customer Engagement
GRAPHISOFT

Anonymous
Not applicable
Hi Gents,

I have the same problem.

Here is the 3D view of an example started from the US commercial template file. Its a corner with a partial height wall intersecting it.

Anonymous
Not applicable
The plan view with floor plan cut plane at 3'
Screen Shot 2014-01-06 at 3.30.51 PM.png

Anonymous
Not applicable
The plan view with the floor plan cut plane at 7'

The materials do not intersect correctly like it does in 3D

Anonymous
Not applicable
Also I cannot get the 2D line to disappear.
