Railing tool - profiled post on plan

Piotr
Contributor
Hi all

Is there any way to display profiled post properly on plan? Don't see any option for this in railing or in MVO settings.


AC23

Regards
Piotr
14 REPLIES 14
Barry Kelly
Moderator
Not that I know of.
Posts (and balusters) have only the 8 symbolic 'types' as shown in your image.
All you can do is make them a custom size.

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Piotr
Contributor
Thanks Barry

Finally I achieved what I needed modifying Built-in Post script.
I added offset option. Luckily I required simple shape, I hoped there was some faster way to do it.


Regards
Piotr
Gerry Leonor
Advisor
so, i'm guessing no chance of having even a simple PFC profile for an end post/inner post?
i didn't have enough time to play around using even a modified rectangle instead of the actual profile.
AC25 | Win10 | 64 bit | 16Gb RAM |Intel i7 8700 @ 3.20Ghz

come join our unofficial Discord server
https://discord.gg/XGHjyvutt8
Barry Kelly
Moderator
Gerard wrote:
so, i'm guessing no chance of having even a simple PFC profile for an end post/inner post?
i didn't have enough time to play around using even a modified rectangle instead of the actual profile.

Not that I am aware of.
The 2D view of a railing is completely symbolic in representation.
There are problems with connections not showing in the correct position and there was a problem where the bottom rail, if it was bigger, would cover the top rail (say a top rail on top off a brick or concrete wall) - not sure if that has been fixed yet.

It would be nice if we could have a true 3D top view for some (or all) parts and maybe a display order as well.

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
runxel
Legend
In theory it is as simple as dropping a "project2 3, 270, 1" into the 2D script of the rail post.

However, one caveat: "project2" is one of the most computation demanding commands in GDL. That's why GS has decided not to implement that.
But if you don't have hundreds of railings you should be fine, I guess. As a workaround it's better than nothing or even patching.
Lucas Becker | AC 27 on Mac | Author of Runxel's Archicad Wiki | Editor at SelfGDL | Developer of the GDL plugin for Sublime Text |
«Furthermore, I consider that Carth... yearly releases must be destroyed»
Barry Kelly
Moderator
runxel wrote:
In theory it is as simple as dropping a "project2 3, 270, 1" into the 2D script of the rail post.

This does indeed work if you save your own custom post object.


The standard profile posts that come with the default library do not have the option for the projected 2D symbol.
You could try doing a 'Save As' on the 'Profiled Post' object, then also doing a 'Save As' on the macro it calls in 2D script.
Then amend that macro to show "project2 3, 270, 1", change the CALL in your new post to call the new macro name.
Then you should have a post that can use profiles and displays the true 2D plan.

Or instead of using the 'Profiled Post', just save your own custom posts and add "project2 3, 270, 1" to the 2D script.

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Hi @Barry Kelly , for those of us just getting familiar with macros, at which point would you  place the "project2 3, 270, 1" into the macro script? I've tried following along, making a duplicate macro and post but it doesn't seem to show, unless there's a display setting i'm missing in the railing itself to switch back from 2d profiles to true 3d?



Many thanks for any feedback.

If your railing is set to use the Model View Option for floor plan display, then make sure the MVO is set to show the posts.

If not using MVO then the railing needs to be set to show posts in the floor plan display.



As for the PROJECT2 in the macro.

You opened the profiled post and have done a 'save as' to create a new object with a new name.

Then open the macro that is calls in the 2D script 'save as' that macro as a new macro with a new name.

All that should be in the 2D script is the PROJECT2 command.

Then make sure the new post object CALLs the new macro name.



I was a while ago that I replied to the original post, but I think that was it.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Hi @Barry , thank you so much for the follow up. Unfortunately I haven't had any luck with that but I appreciate this post was from a while ago. I figured this being quite a sought after result it would be good to get to the bottom of it (for instance we have a fluted series of tiles we are trying to show).



MVO overrides are disabled to try keep things simple.

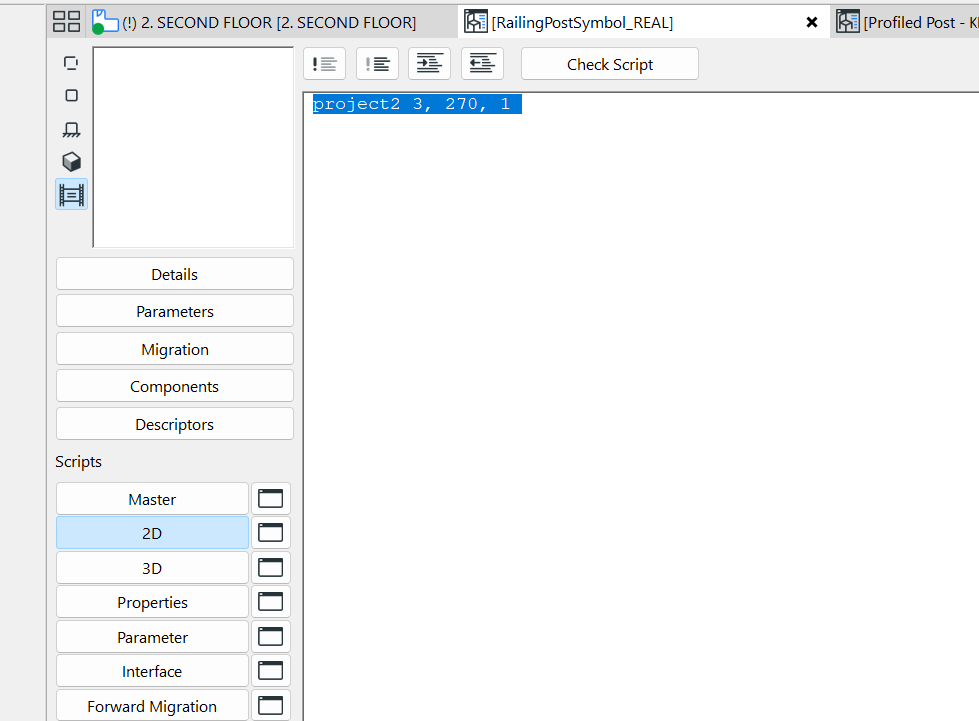

I have duplicated the default profiled post, changing it's name. In the 2D script I called to a duplicate of the macro which only had the project2 command you had listed







These were the only things I changed, but did you think there are other check boxes or parameters to enable/disable? When checking the script it says it is functional but on the plan the railing shows no symbols at all.
