Road texture mapping

bouhmidage
Advisor

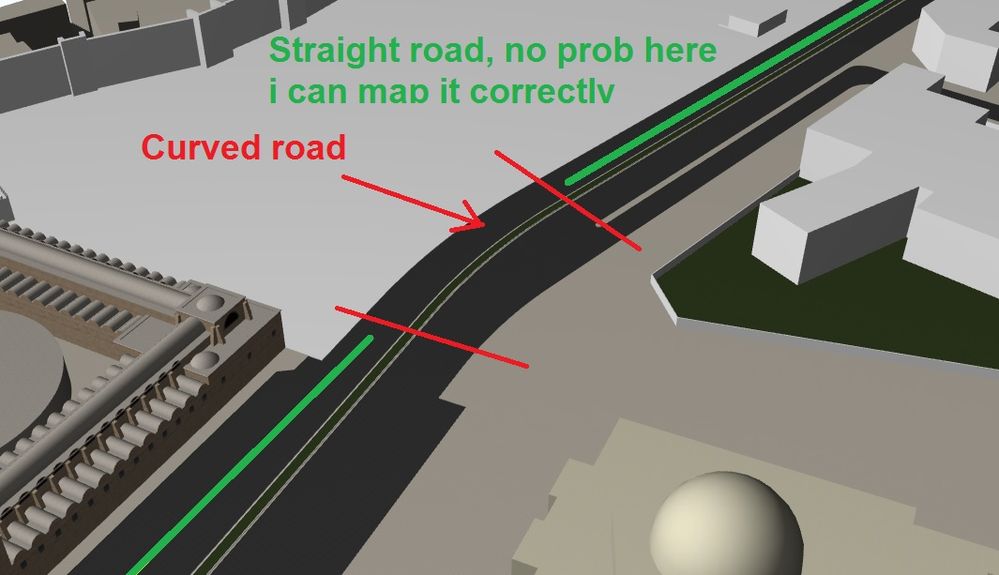

I have to map a curved road with a road texture, the mapping works perfectly with straight roads , ut i can't bend the map to follow the curve of the road , archicad any help Guys !! thanks
i'll use the texture shown below

Sans titre.jpg
AMD Ryzen 9 3900X, 32 GB RAM, RTX 3080 10 GB
Archicad 25
Windows 10 professional
https://www.behance.net/Nuance-Architects
12 REPLIES 12
bouhmidage
Advisor
road texture
AMD Ryzen 9 3900X, 32 GB RAM, RTX 3080 10 GB
Archicad 25
Windows 10 professional
https://www.behance.net/Nuance-Architects
Barry Kelly
Moderator
Is the road an object in which you can give it a radius?
If so you may have an option in GDL (COOR) than may help to map the texture correctly (can't be more specific as I don't have Archicad with me at the moment).

If it is just a slab or mesh then I can't think of a way other than creating a custom texture that fits the curve perfectly.

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
bouhmidage
Advisor
thank you!
the road is created with mesh tool it's not an object coz it has an irregular shape, i'll try to use objects in order to apply that (coor) command in gdl ( i don't even know how to use it 😛 but i'll searsh for some tutorils)

maybe GRAPHISOFT should think about a mapping tool for archicad so we can create a fully textured model . this will make our work more easier and comfortable.
AMD Ryzen 9 3900X, 32 GB RAM, RTX 3080 10 GB
Archicad 25
Windows 10 professional
https://www.behance.net/Nuance-Architects
Model the paint.

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25

bouhmidage
Advisor
I created customized textures, but results are not encouraging as my texture doesn't fit correctly event when I care about measurements,
I used complex profiles and slabs to show details of my road. I don't know anything about GDL unfortunately.
Also, I can't model 20 different surfaces for each road type ( every new surface depends on the road width, curve angle...)
why bended textures doesn't work for construction elements ( it works only with GDL objects and need a special scripting) is this limitation due to the GDL language or to be mapping method, can this be corrected by a new plugin which present a multitude of mapping option ( like the UV mapper in 3ds Max) ??
Thanks
AMD Ryzen 9 3900X, 32 GB RAM, RTX 3080 10 GB
Archicad 25
Windows 10 professional
https://www.behance.net/Nuance-Architects
Barry Kelly
Moderator
I think what Steve was implying is to model the paint lines with walls or slabs.
Easy if your road mesh is flat - just make the wall or slab a millimetre high and place it on the road.
But if your road is an undulating mesh then add walls (or slabs) that are higher.
Duplicate the mesh and drag the duplicate 1mm higher.
Give the mesh a negative height so the sides (skirt) goes up instead of down.
It will basically invert your mesh.

Use Solid Element Operation to subtract the inverted mesh from the walls (with upwards extrusion if necessary if the mesh is not higher than the walls).

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Barry Kelly
Moderator
And the results.

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
bouhmidage
Advisor
Thank you that was helpful !!
AMD Ryzen 9 3900X, 32 GB RAM, RTX 3080 10 GB
Archicad 25
Windows 10 professional
https://www.behance.net/Nuance-Architects
TMA_80
Enthusiast
You could also help with this poll :

http://archicad-talk.graphisoft.com/viewtopic.php?p=205436&highlight=uvmapping#205436

I must say that GS has made a great job with the c4d integration, but if there is something missing, it is certainly the uvmapping ( the "align 3d texture" needs graphical , and more control enhancements )
AC12_20 |Win10_64bit|
