Roads by Railling tool - Profiler manager

Vojtech Slavik
Advocate

Hi, rI did roads design trought railing manager and profile manager.
Honestly I don't know any other better way to do it.



I wonder if I can show it also in 2D, now I only see the railing line, but not what it looks like ( foot print/top view ).

It's a bit tedious to make railings / roads and then make fills for 2D



Skärmavbild 2021-12-14 kl. 13.56.42.jpgSkärmavbild 2021-12-14 kl. 13.55.51.jpgSkärmavbild 2021-12-14 kl. 13.55.18.jpg



AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4
1 ACCEPTED SOLUTION

Solution

I just quickly made a similar profile and used it in the top rail of a railing.

It shows on plan just fine.






What happens if you place a railing off to the side of your model where there is nothing else around?



The only other thing I can think of is if the railing is set to show on the current storey.

i.e. make sure if you are placing it in storey 1, it is not set to only show in storey 2 - or something like that.



Barry.






One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

View solution in original post

14 REPLIES 14

Vojtech Slavik
Advocate

I have problem to be able edit this post - here is example how I made fill and if I delete this fill there is railing what is roads. I would like to get railing tool with visible footprint/2D fills



I hope you understand me 🙂





Skärmavbild 2021-12-14 kl. 14.07.17.jpgSkärmavbild 2021-12-14 kl. 14.07.36.jpg

AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

Tim Ball
Advocate

I’ve used the railing tool like this but you have to make junctions in other ways.

I have just used the mesh tool for the road surface then added kerbs using the railing or even the beam tool

Tim Ball

AC25, iMac

User since V5

Thats also nice way how to do it 👍
Do you know if is possible to show railing with fill or do I have to do it by Mesh.

Because I'm moving with road and mesh is not the best one for moving and changing curv direction,

AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4


@Vojtech Slavik wrote:

Do you know if is possible to show railing with fill or do I have to do it by Mesh.




You have to turn on the visibility in the Model View Options.






Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

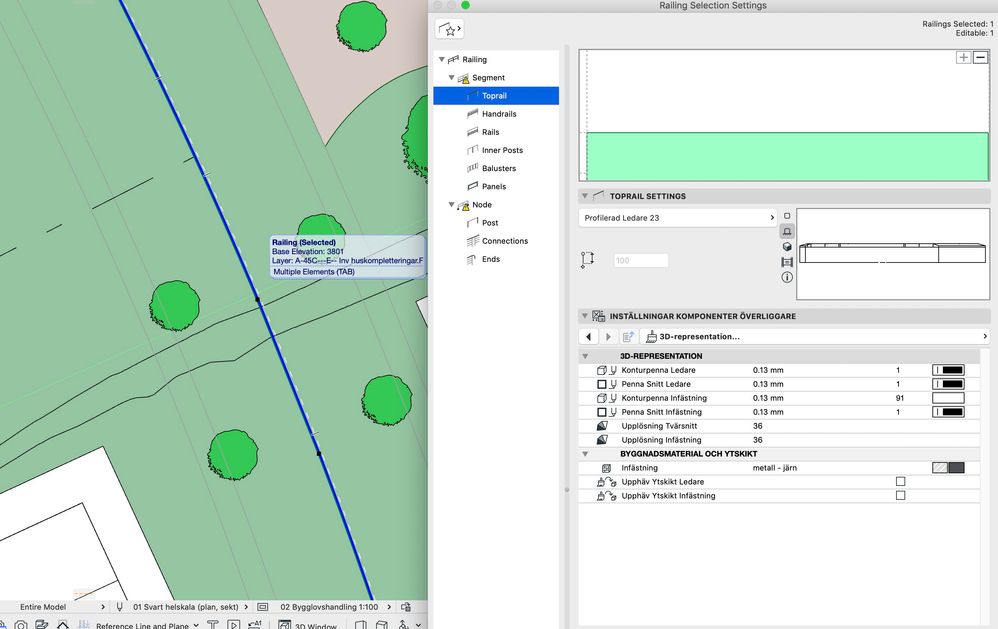

I have and still nothing showing to me 😕Skärmavbild 2021-12-15 kl. 16.33.35.jpgSkärmavbild 2021-12-15 kl. 16.33.48.jpg



Skärmavbild 2021-12-15 kl. 16.32.36.jpg

AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

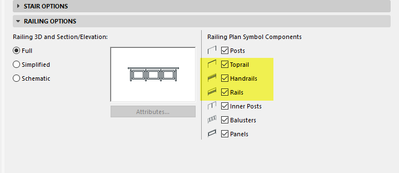

In the 2D representation for the toprail, do you have the with or without axis option active?

Rather than axis only?








Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

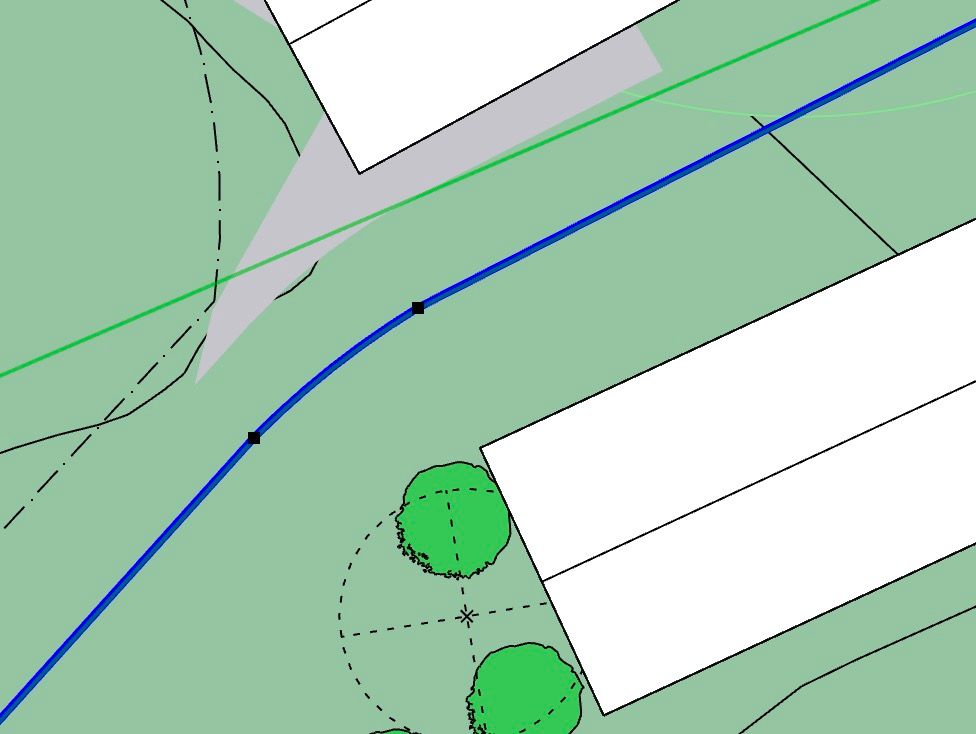

I have .. unfortunately I can't see even blue line 😕



Skärmavbild 2021-12-16 kl. 09.10.00.jpgSkärmavbild 2021-12-16 kl. 09.11.17.jpgSkärmavbild 2021-12-16 kl. 09.11.10.jpg

AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

Lingwisyer
Rockstar

Is your railing a single complex profile? Or are the road, verge and foot path separate rails with their own profiles assigned?





Ling.

AC22-23 AUS 7000
Self-taught, bend it till it breaks.

Win10 | E5620 x 2 | 24GB | K2200 RIP PSU
Win10 | R5 2600 | 16GB | GTX1660

I did like one complex profile.
Skärmavbild 2021-12-16 kl. 09.16.30.jpgSkärmavbild 2021-12-16 kl. 09.16.38.jpg

AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

Solution

I just quickly made a similar profile and used it in the top rail of a railing.

It shows on plan just fine.






What happens if you place a railing off to the side of your model where there is nothing else around?



The only other thing I can think of is if the railing is set to show on the current storey.

i.e. make sure if you are placing it in storey 1, it is not set to only show in storey 2 - or something like that.



Barry.






One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

P.S. you won't see the separate kerbs, path, road in plan as it is just regarded as one rail.

You would have to use multiple separate rails for each piece to have any distinction.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Thats really good point thanks 👍

AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

That was in stories. Silly of me.



Thanks Barry

Skärmavbild 2021-12-16 kl. 10.57.01.jpgSkärmavbild 2021-12-16 kl. 10.57.16.jpg

AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

Oj... My replied came with some strange smiles and I can't edit it 😕 sorry

AC 7 - 25 SWE

iMac (Retina 5K, 27-inch, 2017),

4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4
