Round Roof - how to make "radial ridge lines" not show up?

rob2218
Enthusiast
see attached.

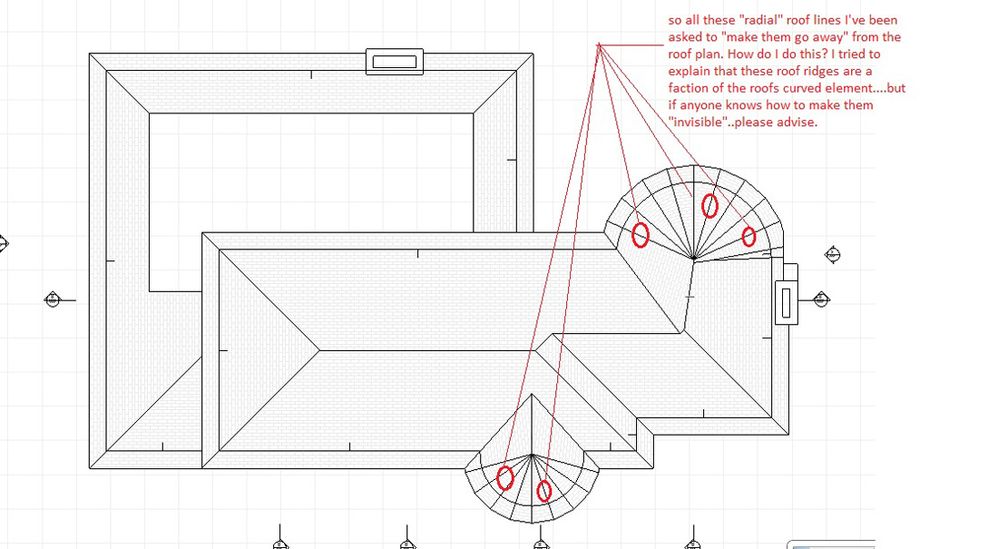

basically been asked to make the "radial ridges" of the rounded roof portion disappear....how do I do that?

...Bobby Hollywood live from...
i>u
Edgewater, FL!
SOFTWARE VERSION:
Archicad 22, Archicad 23
Windows7 -OS, MAC Maverick OS
18 REPLIES 18
Barry Kelly
Moderator
Lots of white lines.

Or cut out that section of the roof and use a SHELL in its place.
You can get a smooth curve with a shell.

Or if your roof is not going to change convert it to a MORPH and you can hide those edges.

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
rob2218
Enthusiast
geez....really?
hubboy....lots of "white" lines meaning...do I have to draw a "2D line" on top of those "ridge" lines? you're kidding me right.....

A morph? no way...this is a remodel (meaning existing, new, demo) so the roof will get very very messy very very quick if I create this thing into a morph.

A shell huh.....hum.....wonder what I can do there?
I haven't used the shell command that much and quite frankly I'm a bit lost with how to use the shell tool to create a smoothed, rounded roof like this.
particularly when this roof intersects into a normal "ridge and gable" roof...
...Bobby Hollywood live from...
i>u
Edgewater, FL!
SOFTWARE VERSION:
Archicad 22, Archicad 23
Windows7 -OS, MAC Maverick OS
Barry Kelly
Moderator
Or possibly the best is to split the roof into single roof planes.
Select just the curved portion and convert that to morphs.
Union them together into one morph and then hide the ridges.

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Anonymous
Not applicable
Or turn the roof layer off in plan and just draw lines exactly where you want them.
rob2218
Enthusiast
s2art wrote:
Or turn the roof layer off in plan and just draw lines exactly where you want them.
GEEZ.....I think 2D autocad is looking better and better again.
Really guys....turn the roof off and "draw" 2D lines where you want them?
come on......there's got to be a better solution than 2D white lines, morphed 1/2 baked shapes, and 2d roof lines....please.
...Bobby Hollywood live from...
i>u
Edgewater, FL!
SOFTWARE VERSION:
Archicad 22, Archicad 23
Windows7 -OS, MAC Maverick OS
rob2218
Enthusiast
but if I morph the two roofs and "turn off (hidden edges)" the ridges...then ALL the roof ridges including the correct ones..will disappear...won't they?
Barry wrote:
Or possibly the best is to split the roof into single roof planes.
Select just the curved portion and convert that to morphs.
Union them together into one morph and then hide the ridges.

Barry.
...Bobby Hollywood live from...
i>u
Edgewater, FL!
SOFTWARE VERSION:
Archicad 22, Archicad 23
Windows7 -OS, MAC Maverick OS
Barry Kelly
Moderator
With a morph you can select the individual edges so long as you use the alternate selection method (white selection arrow) - CTRL+SHIFT (CMD+SHIFT?) is the keyboard shortcut.

If you select the entire morph then yes all edges will be hidden - you will still see the perimeter in plan.

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
rob2218
Enthusiast
is there a "step by step" on how best to use the "shell tool" to create a 'revolved surface'?
I'd like to test the shell tool on this roof.
...Bobby Hollywood live from...
i>u
Edgewater, FL!
SOFTWARE VERSION:
Archicad 22, Archicad 23
Windows7 -OS, MAC Maverick OS
go to the Help Centre. search shell and then navigate through the tree on the right hand side. there are several that would be helpful.
