I'm searching for an object that I could use for a screen porch. Does anyone know where I could find one?
Thanks,
Red

i7 8700k
ROG Strix Z390-E MoBo
64gb RAM
EVGA GeForce GTX 2080
_______________________
http://www.facebook.com/flatcreekdesignstn
http://www.sraarchitects.biz
20 REPLIES 20

David Larrew
Booster
Are you looking for a whole porch Object (floor, columns, roof, screen panels, etc.)?
Or are you asking how to build a porch from individual components using Walls, Columns, Slabs, etc.?
Or are you looking for an object to use as the screen panels?
David Larrew, AIA, GDLA, GSRC

Architectural Technology Specialist

a r c h i S O L U T I O N S



WIN7-10/ OSX 10.15.7

AC 5.1-25 USA

Red:

Do you really need a Library Part ?
If the screen is visiblke only in elevations drawings, a fill may be all you need.
If you needed for a 3D model, you may need to create a new material using the Glass material as a basis and adding some sort of a texture. (Just a suggestion, I have not tried this)

Conrado
Win 10 Home Premium - AMD Phenom IIX6 1090T Processor 3.20 GHZ 8.00 GB RAM 64-bit Opp. Sys NVIDIA Quadro 4000 AC 22, MEP

Jeffrey
Newcomer
Hi Red

I use the technique Conrado suggests, it works great in the 3D model but you lose it in rendering unless you have a good texture. The only textures I've found acceptable for this has been for safety glass with the "chicken" wire in it, screens have been tough because I've never been able to illiminate the backrounds in the textures.
MacBook Pro 2.33 2GB OS X.6.5 AC9

Dwight
Newcomer
To make a convincing porch screen, edit glass by adding a high-resolution noise texture with an alpha channel mask to knock out some background.

Increase the opaqueness of the glass until it all works.

Take out the green color of the glass - make white if aluminum screen and black if nylon.

For shiny screen, make the specular reflection of the material high.
Dwight Atkinson

Red
Booster
Or are you looking for an object to use as the screen panels?.
Yes just the object itself.

By the way thanks for all the help guys. I will give that a try Dwight
Thanks,
Red

i7 8700k
ROG Strix Z390-E MoBo
64gb RAM
EVGA GeForce GTX 2080
_______________________
http://www.facebook.com/flatcreekdesignstn
http://www.sraarchitects.biz

Red
Booster

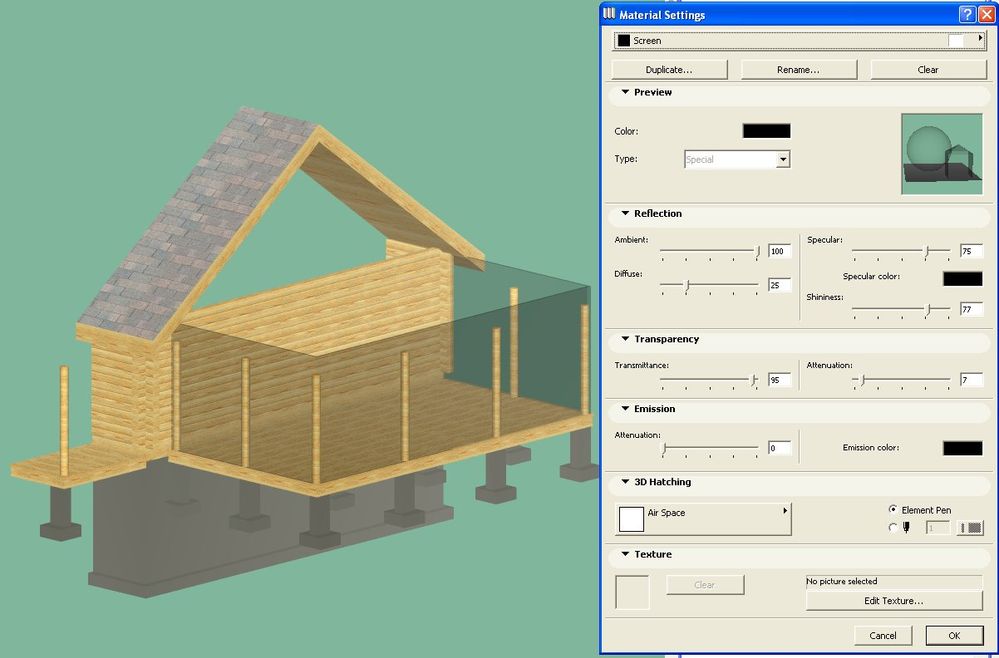

After Dwight mention tweaking the settings of the glass material I think it turned out perfect. Heres an attached file showing the settings with the finished product.
Thanks,
Red

i7 8700k
ROG Strix Z390-E MoBo
64gb RAM
EVGA GeForce GTX 2080
_______________________
http://www.facebook.com/flatcreekdesignstn
http://www.sraarchitects.biz

Karl Ottenstein
Moderator
You've got it, Red.

If the camera might be close enough to the screen that the viewer would (should) see the screen mesh texture - make an alpha-mapped screen mesh and load that texture into your material.

Have fun,
Karl
One of the forum moderators   •   AC 25 USA and earlier   •   MacOS 11.6.1, iMac Pro

marta
Newcomer
hi red,
i tried the settings you gave me, but it doesn't show up at all. it kind of shows up in the materials settings, but when i go to the 3d view, it's totally gone. i even took the transparency way down. i had to take it 30 before it showed up and then it went to total black. any ideas?

Dwight
Newcomer
Post your material settings and your rendering settings.
Dwight Atkinson

marta
Newcomer
this is my materials settings.

marta
Newcomer
this is my rendering setting

Dwight
Newcomer
And what settings are you using for the LightWorks material and rendering?
Dwight Atkinson

marta
Newcomer
i was using the internal rendering engine.

Dwight
Newcomer
please post your rendering result.
Dwight Atkinson

marta
Newcomer
this is it. the two story area on the left is supposed to be a screened in porch. i've shown the screens extending past the roof line just so that you can see them. thanks

Dwight
Newcomer
This appears to be an OpenGL image.
Do you have a rendering?
Dwight Atkinson

marta
Newcomer
maybe i'm confused as to what you mean by rendering. i was just trying to see what it looked like in my 3-d window. will this only show up correctly if i do a rendering, not just an axon or perspective? sorry, i'm still really new at this stuff.

marta
Newcomer
wow, i feel really moronic. i photo rendered the image and it turned up just fine. sorry.

s2art
Newcomer
FYI, OpenGL image has no partial transparency. If a materials' transmittance factor is higher than the setting in the Open GL / Options setting (see below) it will be invisible. Easy mistake to make.
opengl options.jpg
S t u a r t . R o s e
PAUA Architects
AC22 6025 NZE
iMac Retina 27inch
3GHz Intel Core i5, 32GB 2667 MHz DDR4
