Show line at intersection of two forms

washhh
Newcomer

Hello Everyone,



I'm using AC24 and i would like to see line between tow connected 3d element. For exemple tow wall.

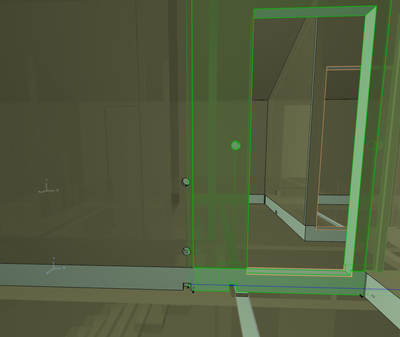

See the image joined



Thank you in advance




4 REPLIES 4

1) In the wall settings dialogue - model panel - override the desired face surface material for the two walls.

2) From options menu - Element Attributes choose Surfaces then duplicate that face material ( only duplication with the same properties).

3) Change the Uncut Line Pen color from Floor plan and Section for only one wall.

hope that helps.

AC 27 INT 5003 - AC 26 INT 6019 ( For MEP Purposes )
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

Another solution without overriding the surface material is to duplicate ( building material and the related surface ) with the same properties then assign this duplicated building material with duplicated surface to one wall.

AC 27 INT 5003 - AC 26 INT 6019 ( For MEP Purposes )
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

Or place each wall into different layer with different intersection level number.

| Archicad 4.55 - 27
| HP Z840 | 2× E5-2643 v4 | 64 GB RAM | Quadro M5000 | Windows 10 Pro x64
| HP Z4 G4 | W-2245 | 64 GB RAM | RTX A4000 | Windows 11

I see your solution is effective in plan while mine is effective in 3D, Elev. & Sec. that’s cool, but the question is why and when we need this separator line?
