Shrinked custom curtain panel

AZain29
Contributor

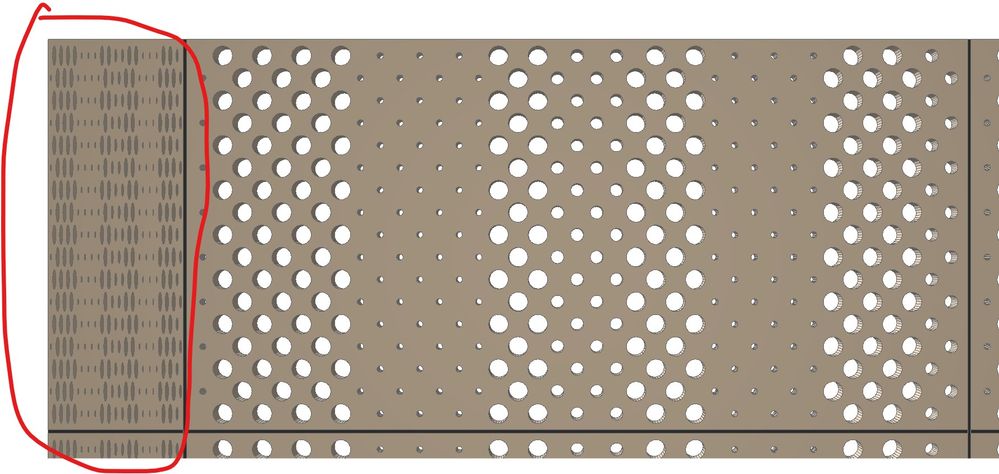

I have build a custom curtain wall panel using morph and save as curtain panel. But when i applied the panel, the unmatched scheme size (the rest size). The panel shrinked, is there a setting to make the panel still on the original size (it is ok if the panel cut off).


Curtain panel.jpg
4 REPLIES 4
runxel
Legend

Can be done, but not without some GDL scripting.

Lucas Becker | AC 27 on Mac | Author of Runxel's Archicad Wiki | Editor at SelfGDL | Developer of the GDL plugin for Sublime Text |
«Furthermore, I consider that Carth... yearly releases must be destroyed»
AZain29
Contributor

Any tutorial how to use gdl for automatic cutting panel in curtain panel?

I am not aware of any tutorial for this very specific use case.

I did it with a CUTFORM, which has the appropiate coordinates. You get those from either AC_ClampFreeRegionCoords, AC_PanelCoords, or AC_FrameAxisCoords. Depending on the setting.
