Stone frames in windows,possible?(check image)

Anonymous
Not applicable
It is possible to do in 3d in archicad?

I want do the stone frames that round the door and the windows (blue marked)

The red circle suggest other question that I think that archicad don't do it in a easy way. Is it possible to do in 3d?

10 REPLIES 10

Anonymous
Not applicable
1. Stone frames....YES (see the picture)
2. Object in red circle....YES, but don't in a so easy way

Anonymous
Not applicable
Thanks!!

Can u suggest a way to do what is in the red circle?
In section and elevation with spline for example combined with something elese ?Is that a good way in your opinion??

Anonymous
Not applicable
Looking at the photo, it will take 3 separate objects using the Profiler tool, but yes, it can be done.

Anonymous
Not applicable
Definitely possible, for example:

This was done years ago (AC10) as an exercise.
I barely understood the power of AC and should
have used profiles far more extensively.

This was made with a few profiles and slabified objects
that were cut rotated and recut and rotated again
using the marquee tool in 3d.
Look at the AC help for making library parts, using the marquee
and the profiler. All was done in AC. Zero GDL.

On the left is the simple profiled volute. Finished object on right.

Snap

Anonymous
Not applicable
Try running through the object making tutorial. I found it very helpful, especially when creating special windows and doors. Find it at:

http://www.graphisoft.com/education/training_guides/

Ralph Wessel
Mentor
PedroXeneta wrote:
I want do the stone frames that round the door and the windows (blue marked)
The red circle suggest other question that I think that archicad don't do it in a easy way. Is it possible to do in 3d?
Take a look at OBJECTiVE. Watch the first example clip for an example of modelling stone detailing on a building facade (an example elevation is attached). OBJECTiVE provides tools and objects that allow you to model and edit the building model in an easy and intuitive way, like the rest of ArchiCAD.
Ralph Wessel BArch

Stress Co_
Advisor
Ralph wrote:

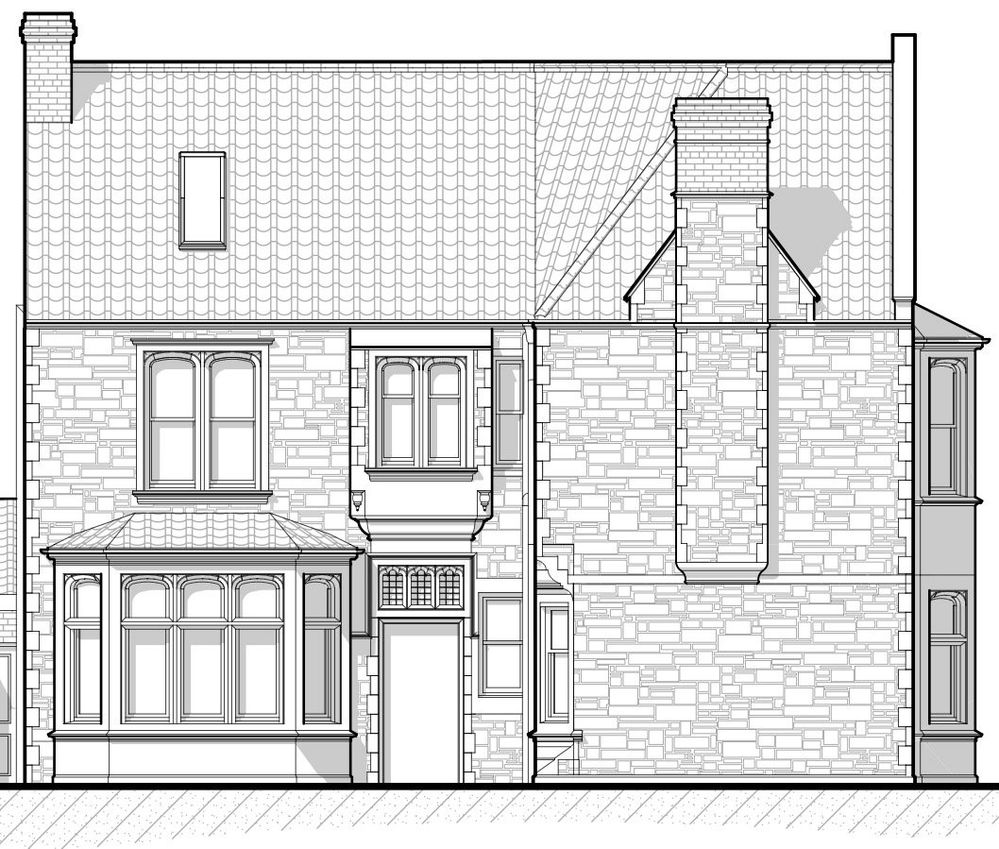

....an example of modelling stone detailing on a building facade (an example elevation is attached).
Off topic... but Ralph... I assume the example elevation has some 2D line work?.. the bold outlines?
OBJECTIVE is now on my "WANT" list for Archicad addons.
Cheers, Marc
Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina)
Processor: 3.6 GHz 8-Core Intel Core i9
Memory: 48 GB 2667 MHz DDR4
Graphics: Radeon Pro 580X 8GB
ArchiCAD 25 (5010 USA Full)

Ralph Wessel
Mentor
Stress wrote:
I assume the example elevation has some 2D line work?.. the bold outlines?
Yes, I add the bold line-work manually. It's very quick and easy to do, but enormously effective for adding 'depth' to the drawing.
Ralph Wessel BArch

Ralph Wessel
Mentor
Stress wrote:
I assume the example elevation has some 2D line work?.. the bold outlines?

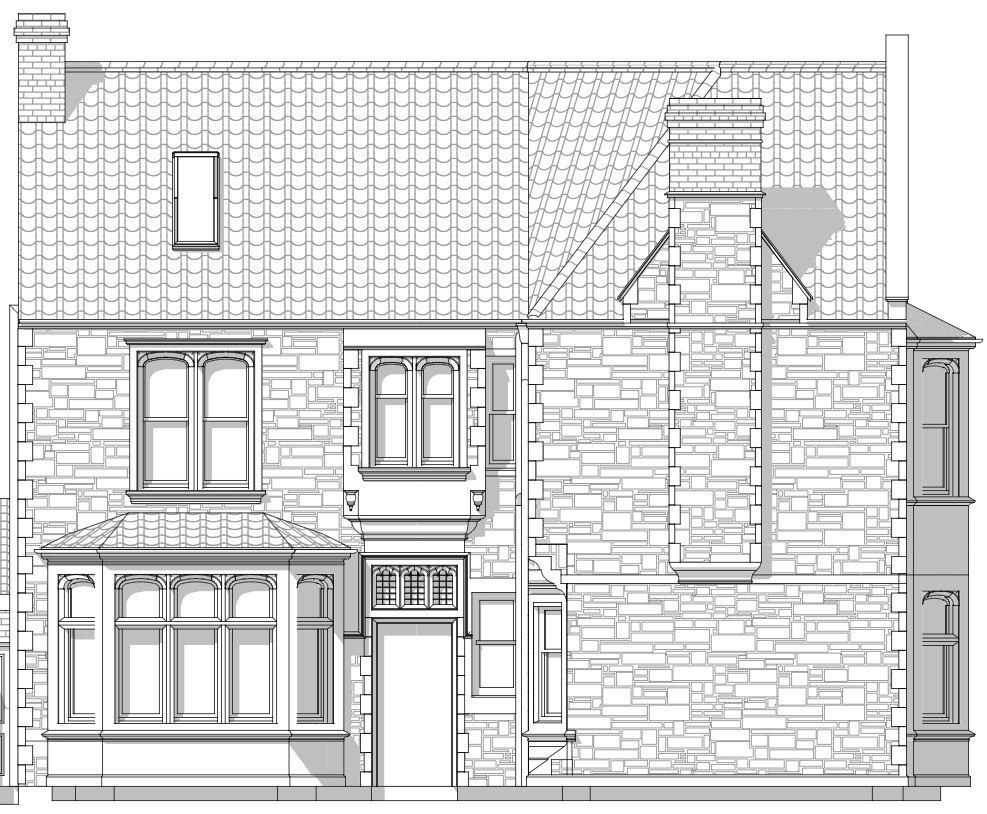

For reference, the attached image shows the same elevation with all 2D elements removed.
Ralph Wessel BArch
