U stair with step in landing

Dave Brach
Enthusiast

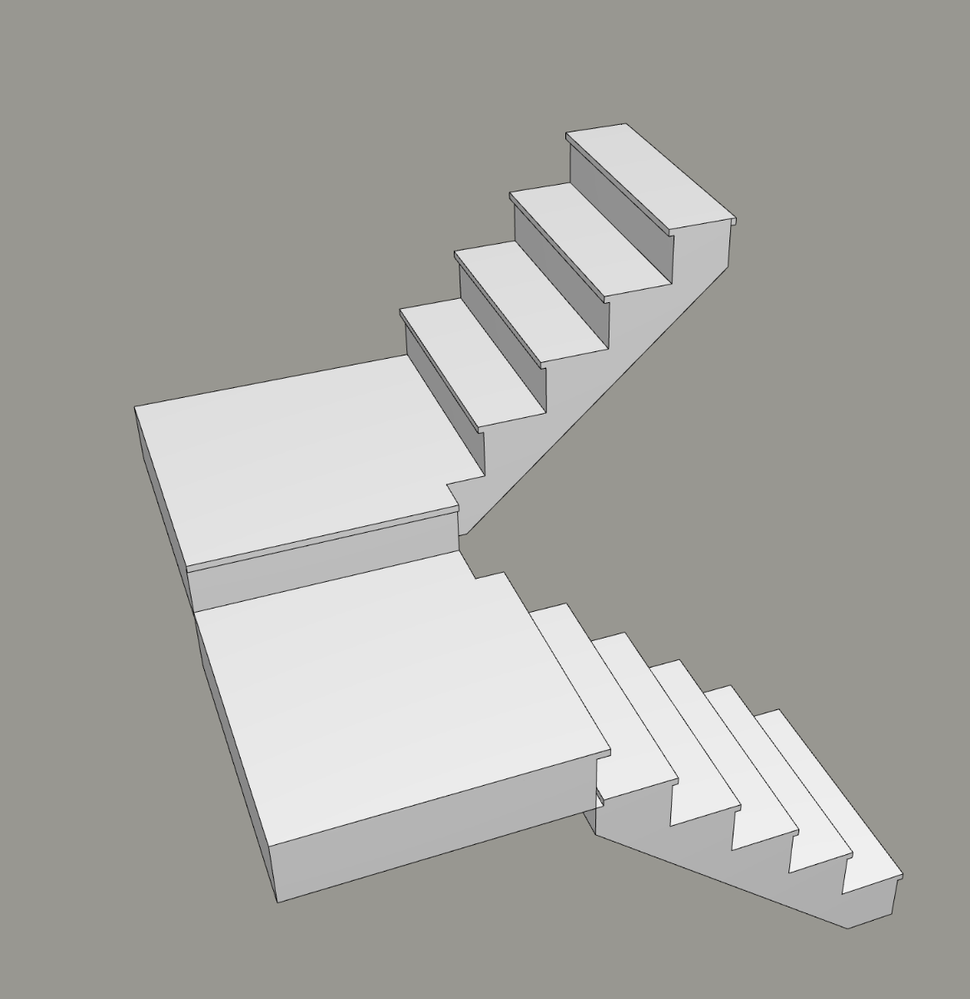

I am trying to create a "U" shape stair with a step in the landing. It needs to be very compact so I want the 2 landings to be rectangles, not "L" shape, and no space between the 2 flights. So I create a flight, then a landing, then for the next landing I use "winder with equal angles", then the final flight. But the 2 landings are still modified "L" shapes, not rectangles.
Dave Brach/architect

Salt Lake City USA

www.brachdesign.com

AC26 MBP OS Ventura

2.6 GHz 6core intel core i7 16 GB RAM

Radeon Pro 555X 4096 MB

Intel UHD Graphics 630 1536 MB
1 REPLY 1

Barry Kelly
Moderator
Like this?

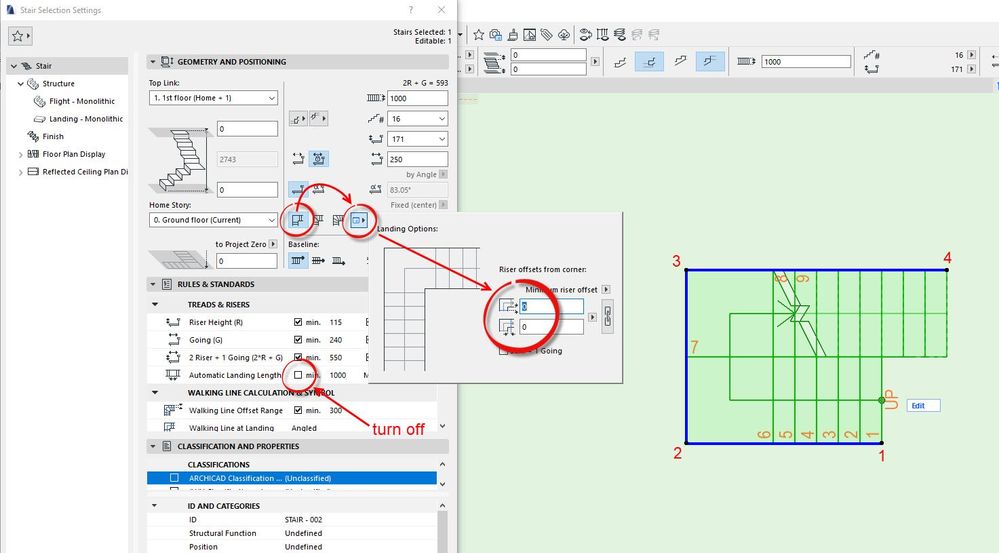

Try these settings.


Use the standard landing and set the riser offsets to zero.
Turn off the rule for automatic landing length.
Draw the reference line on the outside of the stair.
Make sure the distance between points 2 & 3 is twice the flight width.

You can do it also using the winder instead of the landing, but then you have place the start and end of the first flight, then switch to 'winder' in the pet palette, add the next 3 nodes for the winder (landing), and then switch back to 'flight' and add the last node.


Barry.

One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10
