Unnecessary ridge added to roof

Nora
Participant

Hi there,

I've been having some problems with my roof

It keeps adding a ridge when it isn't necessary


I've deleted it and redid the roof just to be sure it wasn't a one-time thing but it didn't solve anything. The ridge is still there.



And it's really messing up with the roof covering




Has anyone ever had this problem?





4 REPLIES 4

Barry Kelly
Moderator

Is it a multi-plane roof or single roof planes?



I am guessing something is not quite square?



What happens if you remove just the roof over the stairs?

Does that front surface become just one plane or is there still some kind of break.

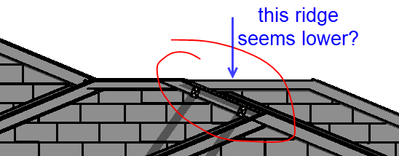

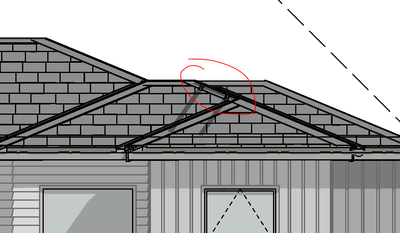

In the elevation, the ridge to the right seems a little lower?

It is hard to say with the accessories showing.






Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

mthd
Expert

Hi, I noticed that the valley line on the RHS over the stairs, goes all the way up to other ridge for some reason ?



Have you tried deleting the whole roof and then use the magic wand to create a new one yet ?



Otherwise you can just edit that roof plane that has the out of place valley and make sure it stops at the point where the LHS valley intersects over the middle wall between the stairs.

AC8.1 - AC24 + Ci Tools
Apple Studio CPU 10C
GPU 24C 7.8TF 32GB RAM

Hi Barry,

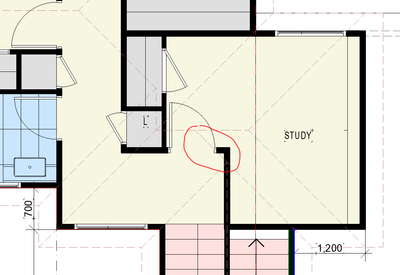

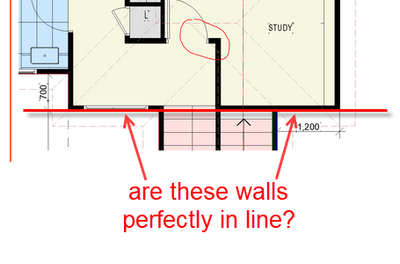

Yes, the walls were 0.1+mm off from each other that's why it was creating the ridge.







Wow ! Archicad is quite precise but in the real world those walls can be out by allowable tolerances and it would not affect how the roof framer would build it.



Thankfully Barry has lots of experience with the program for him to pick that up.



I will remember this if my roofs don’t build correctly in the future.



But I always set my buildings out with active dimensions while drawing them up so that I can avoid those types of errors.
