Walls - Difficult intersections

Greg D
Participant
I have been using ArchiCAD for many years and am surprised I cannot do this, but I am having a difficult time getting this wall configuration to clean up properly.

I have tried many combinations of composites, and priorities, but some skin always cuts through or gets cut where I don't want it to.

Any advice?

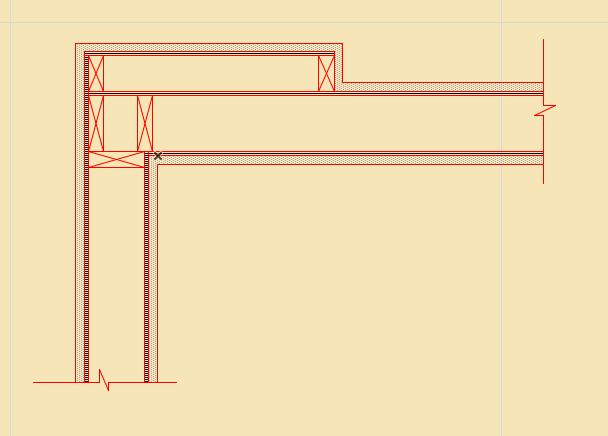

Screen shot 2012-10-05 at 10.42.41 AM.png
Greg Danskin - Architect
http://www.danskinarchitecture.com

AC 19/20/21
iMac Retina 5K, 4 GHz Intel Core i7, 32 GB 1867 MHz DDR3, AMD Radeon R9 M395X 4096 MB
OS 10.13.4 High Sierra
1 REPLY 1

Laszlo Nagy
Community Admin
Community Admin
I know it is a "hack" but you can place a Complex Column there in that problematic corner. Draw the various skins in the Complex Profile Manager and place it there as a Column. It will cut itself out of the Walls and create clean joins with the Walls if the Fills of the skins are the same.
....................................................................................................
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC25
Loving Archicad since 1995
