What's the best way to model curve roof

Daniel_He
Contributor

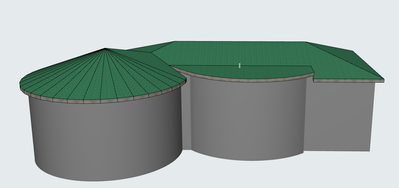

Hi, Everyone. I was modeling curve roofs using mesh method as shown in below picture, but there were some issues such as mesh node control, inside shape control and structure. So I'm seeking help to find the better solution. Thanks




Daniel.He

ArchiCAD 25 3011 USA - Windows 11 Home 64x
Huawei Matebook16 R7-5800H 16G 512G SSD
8 REPLIES 8

Try shell tool if roof is not convenient.

Shell tool is the answer.

FREE Soffit & Fascia for Rail Tool - https://bit.ly/BIMRithmSoffitandFascia
FREE wall Accessory framing and coverings - bit.ly/BIMRithmWallAccessories
FREE Truss object - https://bit.ly/BIMRithmTrussV1
FREE Custom Tube Object - https://bit.ly/BIMRithmPolyTube
AC 24, Twinmotion current, Windows 11, Msi 10UG with rtx 3070, wacom intuos pro m, Wacom Cintiq Pro 16, razer Tartarus pro.

ryejuan
Expert


i'm not sure if this is what you want to achieve.

In the end what is your Objective?
ArchiCAD 9 onwards

the shell tool should give cleaner curves, rather than the more segmented appearance of the "curved" roof solution... even though a framed roof would be segmented when built, most wouldn't want to see those lines.

BIM solutions and trouble shooting (self proclaimed) expert

4dProof
Expert

as others have said, the revolved shell is the best bet. You can use the same composite as your main roof body. You may need to place some dedicated operators (use simple planar morphs for this) and trim with solid element operations to get them to join cleanly to the main roof body.

BIM solutions and trouble shooting (self proclaimed) expert

ryejuan
Expert

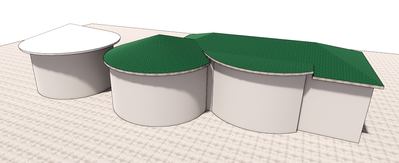

white material is using shell tool. yes you can remove the lines, if removing lines is just the issue when you render the model the lines would not be shown.


it really depends on how you want to show your drawings like the 2d representation of the model in plans etc. like @4dProof said the plans might be used for construction therefore contractor might need how the roof is being segmented.

There are lots of ways to do this but in end what do you want to achieve?

In the end what is your Objective?
ArchiCAD 9 onwards

Hi, thank you very much. I am not skilled on shell tools, I will try

Daniel.He

ArchiCAD 25 3011 USA - Windows 11 Home 64x
Huawei Matebook16 R7-5800H 16G 512G SSD

aboutmend
Participant

I think Shell tool will help you in it
