attach fence or railing to curved ramp??

Anonymous
Not applicable
Hello if any one can clarify how to attach the fence or railing to this curved ramp in the image
thanks for this lovely forum
5 REPLIES 5
NCornia
Graphisoft
Graphisoft
This is very similar to a question you have asked before: http://archicad-talk.graphisoft.com/viewtopic.php?p=187138&highlight=#187138

In this case you would only add the step of adjusting the railing for the horizontal curvature of the ramp. I would use columns for the balustrades and a spiral beam for the railing.

If you use the rail or fence objects the complete rail will have to be composed of several straight segments adjoining each other.

http://www.archicadwiki.com/SpiralBeam
http://www.archicadwiki.com/ComplexProfileBalustrades
Nicholas Cornia
Technical Support Team - GRAPHISOFT North America
ARCHICAD on Twitter
Tutorials
GRAPHISOFT Help Center
Anonymous
Not applicable

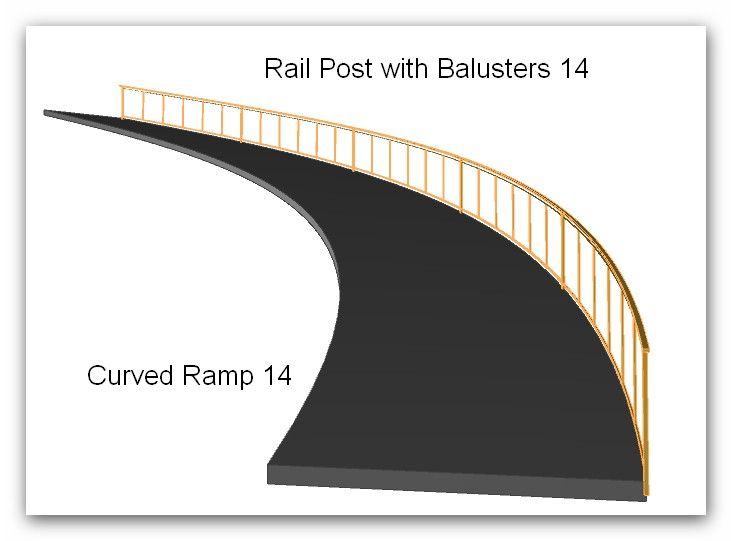

Using objects in AC14 Library! In one segment only.
Rail post with balusters 14 on Curved Ramp.jpg
NCornia
Graphisoft
Graphisoft
Andro55,

Thank you for illuminating me about this feature. I have never noticed the Rail and Parameter Input Type parameter before now, even though it was right under my nose.

Ahmed, do what Andro55 says.
Nicholas Cornia
Technical Support Team - GRAPHISOFT North America
ARCHICAD on Twitter
Tutorials
GRAPHISOFT Help Center
Anonymous
Not applicable
Hi all,
it`s quite an easy task with curtain wall tool!!!!!
ahmed_hassan wrote:
Hello if any one can clarify how to attach the fence or railing to this curved ramp in the image
thanks for this lovely forum
a railing system like this ? http://archicad-talk.graphisoft.com/viewtopic.php?p=216476&highlight=pipe+railing#216476

If you want it, I think I could still find the ArchiCAD model for this set of pipe railing objects I made.

Can you so a picture or example of the kind of railing you need for the ramp?
