complex reveal on archicad 20

Anonymous
Not applicable
Hi,


I want to realize a reveal on the external surface of my wall. The idea is to carve the insulation layer.

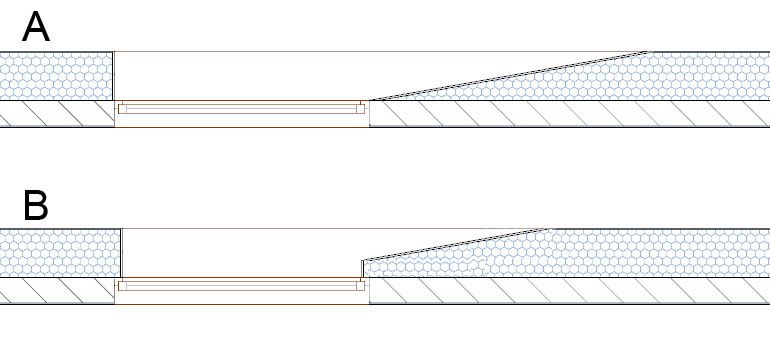

In the picture A you can see what obtain, however to decrease the thermal bridge, it is essential to put the insulation over the frame like in the B sketch (photoshopped).

Is there anyone that know how I can realize this?

thx

0 REPLIES 0
