overlaping zones in section (AC26)

username2021
Contributor

Hi

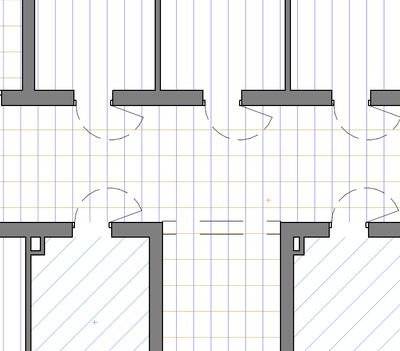

I have problem with zones in my project. I have some overlaping zones and I need them to be this way (as in the pic).

zones plan.png

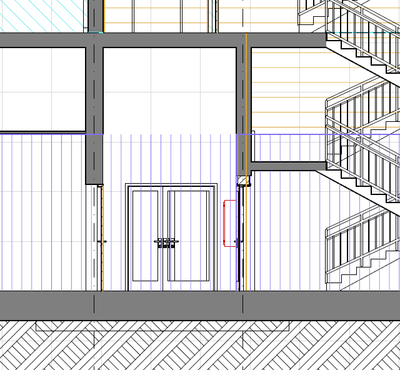

Everything looks fine in plans, but I can't make it look good in section. Even tho I checked the transparency option in section, one of the overlaping zones do not show, as if the hatch had white background (pic 2). There should be both violet and yellow stripes showing in corridor.

zones section.png

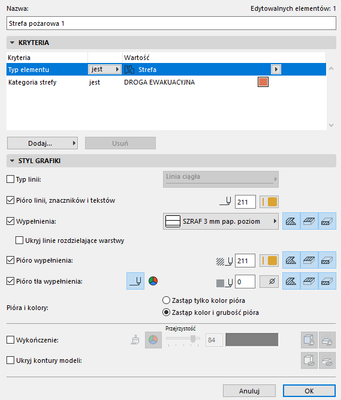

Here's e.g. my graphic override rule for yellow stripes (in polish):

graphic override.png

Does anyone know how to fix this, or maybe how to make it work another way?

1 REPLY 1

Laszlo Nagy
Community Admin
Community Admin

Maybe the Surfaces also need to be overridden with a color with 100% Transmittence value?

....................................................................................................
