stair with inner only radius

michkalo01
Participant


any way to make a stair with a curved inner landing? (on the picture where the R is pointing). the outside stills stays rectangular, it's just the inner part i am looking to curve while still keeping the element a stair with railings following the shape.

1 ACCEPTED SOLUTION

Solution
Rajesh Patil
Advocate

While selecting stair use "Tab" key to toggle between selection options.


 Use Boundary edit and NOT Baseline edit method. In boundary edit get the pet pallet by clicking on inner boundary and choose "Fillet" option from there. Hope this will solve your problem.

Rajesh Patil
AC 09-25 | INT | WIN11 64
Dell Inspiron 7591, Core i9, 9880H 2.30GHz, 16.0GB, NVidia GeForce GTX1650, 4.0GB, SSD Internal 500GB, Dell SSD External 250GB

View solution in original post

5 REPLIES 5

Rajesh Patil
Advocate

You have to edit the inner boundary of stair with Pet Pallet "Fillet" radius option


Rajesh Patil
AC 09-25 | INT | WIN11 64
Dell Inspiron 7591, Core i9, 9880H 2.30GHz, 16.0GB, NVidia GeForce GTX1650, 4.0GB, SSD Internal 500GB, Dell SSD External 250GB

it's turning both inner and outer corners for me, what are you doing that it's letting you just fillet the inner corner?

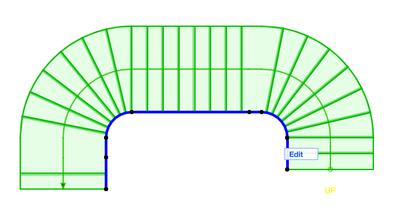

Screen Shot 2022-04-18 at 9.45.29 PM.png

Solution
Rajesh Patil
Advocate

While selecting stair use "Tab" key to toggle between selection options.


 Use Boundary edit and NOT Baseline edit method. In boundary edit get the pet pallet by clicking on inner boundary and choose "Fillet" option from there. Hope this will solve your problem.

Rajesh Patil
AC 09-25 | INT | WIN11 64
Dell Inspiron 7591, Core i9, 9880H 2.30GHz, 16.0GB, NVidia GeForce GTX1650, 4.0GB, SSD Internal 500GB, Dell SSD External 250GB

wow, the many options of Archicad that very few know of..... it worked!!! Thanks a million Rajesh:)

Lingwisyer
Champion

The only issue with the Boundary edit option is that the structure is not modified so it does not really work if you have a monolithic structure...

AC22-23 AUS 7000
Self-taught, bend it till it breaks.

Win10 | E5620 x 2 | 24GB | K2200 RIP PSU
Win10 | R5 2600 | 16GB | GTX1660
