wall connection

ratnabhirud
Contributor
Hello to all,

Here is another problem of clean wall intersection.

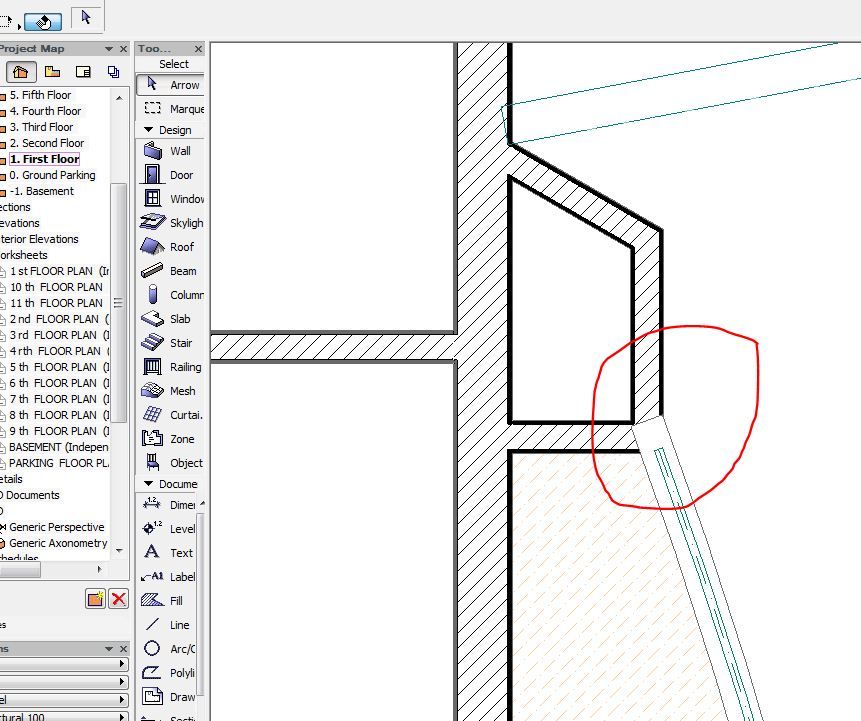

As per attached image both walls are composite but having different height, one is of say 7 feet and another is 6 inch.
Why these walls are not having clean connection? ( AC 14 )

Any help or hint?

Thanks & regards,

Ratna

3d junction.JPG
AMD Ryzen 5 3600 6-Core Processor 3.59 GHz
Ram - 16.0 GB
System - Windows 10 Ultimate, 64 bit

NVEDIA GForce 8400GS

Archicad 9..., 24
1 REPLY 1

Erika Epstein
Booster
Different layer intersection numbers?
Reference lines not meeting?
Erika
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System

"Implementing Successful Building Information Modeling"
