Dimension with opening height according to door sill.

dchatrath
Participant

‎2022-02-09 03:00 PM - last edited on ‎2022-09-28 07:31 PM by Graphisoft

Hi.

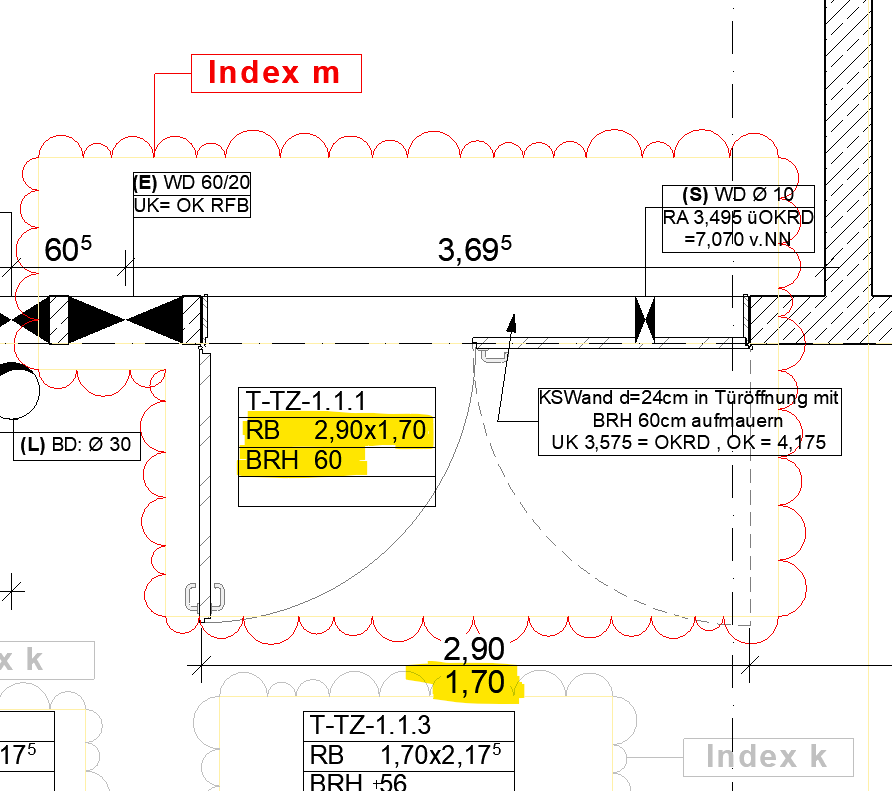

I have modeled a door with a sill height of 0.6 m. The actual dimensions of the door should be 2.9 m x 1.7 m. The actual opening dimensions should be 2.9 m x 2.3 m. When I dimension the door, the dimension line indicates the height of the door and not the opening. How can I get it to indicate the opening height?






Door Opening Dimension.png
Archicad 24,

Windows 10 Pro, 64 bit

Intel(R) Core(TM) i5-8500 CPU @ 3.00GHz 3.00 GHz, 16.0 GB RAM
