Greetings,

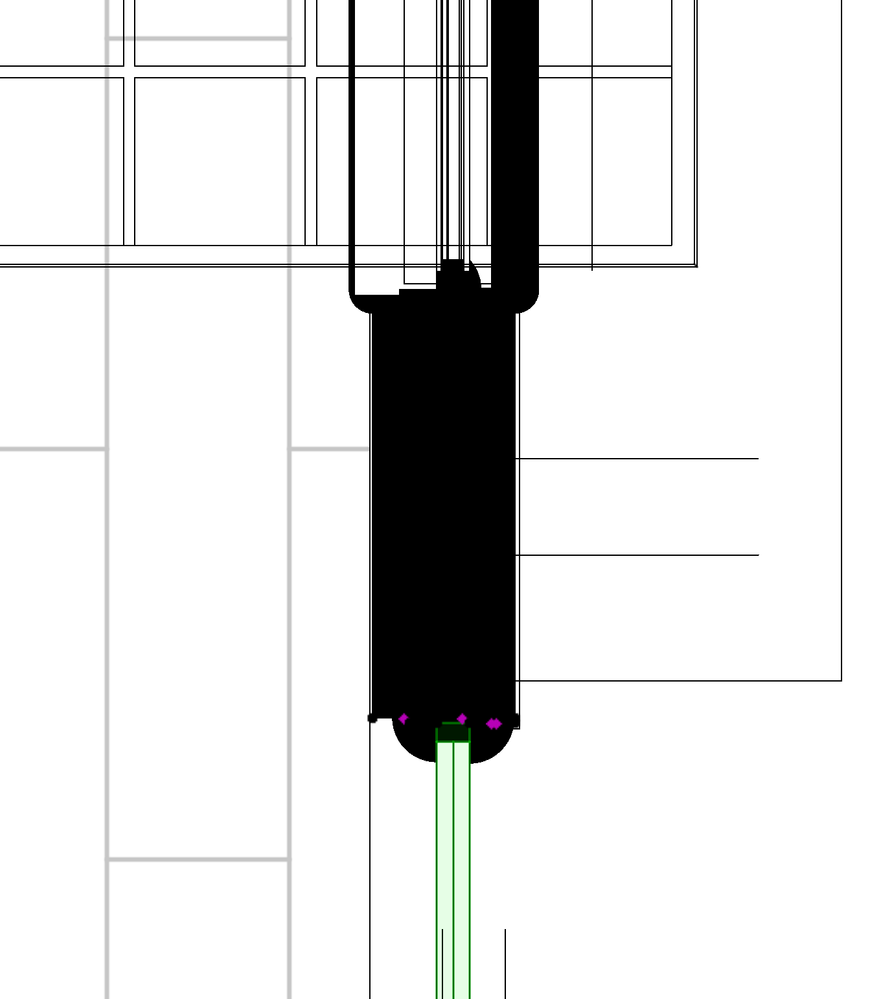

Thank you for your replies ahead. I am trying to clean these openings for presentation, editting a CI window.



 Screenshot 2022-11-17 172652.pngScreenshot 2022-11-17 172853.png


Screenshot 2022-11-17 172652.pngScreenshot 2022-11-17 172718.pngScreenshot 2022-11-17 172853.png
2RA Building Workshop
www.2rabldgworkshop.com

11th Gen Intel(R) Core(TM) i7-11800H @ 2.30GHz. 16.0 GB. NVIDIA GeForce RTX 3060 Laptop GPU.
ArchiCAD 25. 5002 USA Full
3 REPLIES 3
Gerry Leonor
Advisor

it's extremely vague to me.

what's the problem exactly?

AC25 | Win10 | 64 bit | 16Gb RAM |Intel i7 8700 @ 3.20Ghz

come join our unofficial Discord server
https://discord.gg/XGHjyvutt8
MetalFingerz
Advocate

Hi @2raarchitecture ,



I'm guessing it is a line weight issue ?



If so, then you may have several solutions depending on what fits your best :

- turn off the true line weight (right click on an empty space or go to View > On-Screen View Options)

- change the weight of the specific pen in the pen set in question (Element attributes > Pens & Colors)

- change the 2D and/or 3D representation of the object to a lower LOD if possible

- change the scale of the view to a lower one



There may be others solutions as well but on top of my mind, those are ones that could help.

Screenshot 2022-11-27 203634.png



 thank you kindly for your replies and I appologies for any vagueness...the solution was to change the complex profile settings on the attached options. I figured this could be helpful when doing walls as complex profiles.
