Existing overhead beams

KeesW
Enthusiast

I am using the Renovation tool. I want overhead beams and elements to show as dotted lines - just as AC used to do in legacy mode. Using AC24 and 25, new overhead beams show dotted but existing beams always show as solid lines. It looks like a filter and/or override issue but I don't know how to change this. Any suggestions would be appreciated.

Cornelis (Kees) Wegman

cornelis wegman architects

AC 5 - 25 Dell XPS 8940 Win 10 1TB SSD 2TB HD RTX 3070 GPU
Desktop: Archicad 5.5 - 25, Win10 64, Core i7 , 16 GB RAM, NVidia GTX560 Ti, 1.5TB HD, 500GB SSD

Laptop: Archicad 16 - 24, Win10 64 Core i7, 8GB RAM, 2GB NVidia GT 540M
1 ACCEPTED SOLUTION

Solution
DGSketcher
Rockstar

Check your Override Rules settings for existing

or Apply a Graphic Override filtered to work on Existing beams

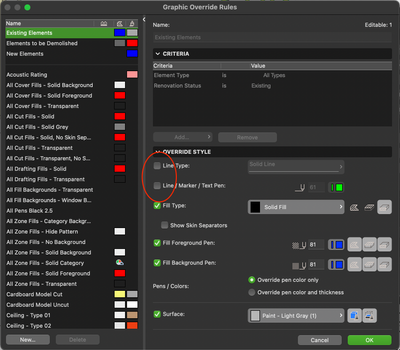

Screenshot 2022-01-12 at 12.37.24.png

Apple iMac macOS Monterey / AC25UKI (most recent builds)

View solution in original post

2 REPLIES 2

Solution
DGSketcher
Rockstar

Check your Override Rules settings for existing

or Apply a Graphic Override filtered to work on Existing beams

Screenshot 2022-01-12 at 12.37.24.png

Apple iMac macOS Monterey / AC25UKI (most recent builds)

Than you.

Cornelis (Kees) Wegman

cornelis wegman architects

AC 5 - 25 Dell XPS 8940 Win 10 1TB SSD 2TB HD RTX 3070 GPU
Desktop: Archicad 5.5 - 25, Win10 64, Core i7 , 16 GB RAM, NVidia GTX560 Ti, 1.5TB HD, 500GB SSD

Laptop: Archicad 16 - 24, Win10 64 Core i7, 8GB RAM, 2GB NVidia GT 540M
