Export label to dwg. Is this a bug?

LeeJaeYoung
Advisor





주방 = kitchen is TEXT

The rest are labels.



옷장 = dress room is label



I looked at the mtext value with the autolisp function.
There's too much code for number 3.



(-1 . <Entity name: 2a6485c11c0>)
(0 . "MTEXT")
(330 . <Entity name: 2a65a1219f0>)
(5 . "718C") (100 . "AcDbEntity")
(67 . 0) (410 . "Model")
(8 . "Annotation - LabelPen-6") (62 . 7) (370 . 9) (100 . "AcDbMText") (10 15352.2 1269.96 0.0) (40 . 200.0) (41 . 0.0) (46 . 0.0) (71 . 2) (72 . 1)
(3 . "\\A1;{\\pqc;\\pt0,6000;\\f맑은 고딕|b0|i0|c129|p50;옷장\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0")
(3 . "|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|")
(3 . "p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 ")
(3 . "고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|")
(3 . "c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;") (1 . "\\f맑은 고딕|b0|i0|c129|p50;\\f맑은 고딕|b0|i0|c129|p50;}")
(7 . "맑은 고딕") (210 0.0 0.0 1.0) (11 1.0 0.0 0.0) (42 . 1814.99) (43 . 259.918) (50 . 0.0) (73 . 1) (44 . 1.0))



I looked at the value of mtext generated by autocad as autolisp.
Not 3, but 1, and the amount is too small.



((-1 . <Entity name: 2a65b585ae0>) (0 . "MTEXT") (330 . <Entity name: 2a65a1219f0>) (5 . "7216") (100 . "AcDbEntity") (67 . 0) (410 . "Model") (8 . "0") (100 . "AcDbMText") (10 19846.6 1291.85 0.0)
(40 . 300.0) (41 . 1023.46) (46 . 0.0) (71 . 1) (72 . 5)
(1 . "{\\fGulim|b0|i0|c129|p50;옷장}")
(7 . "Standard") (210 0.0 0.0 1.0) (11 1.0 0.0 0.0) (42 . 747.004) (43 . 335.153) (50 . 0.0) (73 . 1) (44 . 1.0))



Is this a bug?



AC25 5010 on window 11
5 REPLIES 5

Noemi Balogh
Community Admin
Community Admin

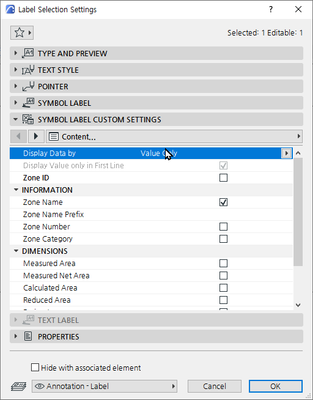

Do you use the Archicad 25 zone label here? Or which label is this?

It helps the community to understand better what your issue is, so we can give you better advice.

Noémi Balogh

Customer Engagement Expert, Community Admin







I have another question, can I do it?
A question about Archicad's policy in Korea.

AC25 5010 on window 11





On the left, 3 spaces have been erased.
If you export the label, you will get a blank space.



AC25 5010 on window 11

I wonder if you guys used code 3?
Lisp, which removes whitespace from Mtext used by autolisp, doesn't work either. It works only after clicking once on the Mtext you created in CAD.



This is original dxf code

(3 . "\\A1;{\\W0.750000x;\\pqc;\\pt0,76000;\\f나눔고딕|b0|i0|c129|p50;W2B\\f나눔고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\A1{\\H.66x;\\S^ ;}\\f나눔고딕|b0|i0|c129|p50; \\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나") (3 . "눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i") (3 . "0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p") (3 . "50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고") (1 . "딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;\\f나눔고딕|b0|i0|c129|p50;}")



This is the dxfcode changed after clicking.

(1 . "\\A1;\\pxqc,t0,380;{\\W0.5625;W2B\\H0.66x;\\S^ ;\\S^ ;\\H1.51515x; }")



Value is W2B

AC25 5010 on window 11

No answer, so I'm asking again.

AC25 5010 on window 11
