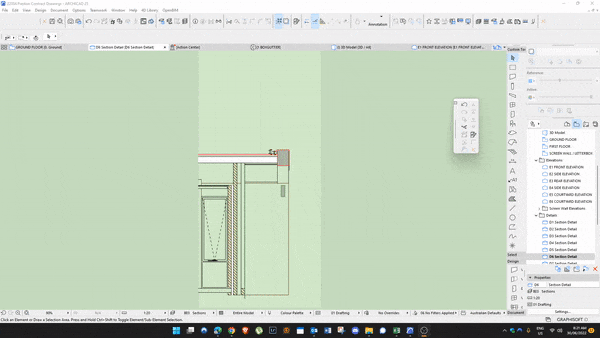

Where is the setting that allows the Horizontal Boundary to be adjustable in the Section View?

For some reason they've worked fine until now.



Thanks



1 ACCEPTED SOLUTION

Solution
DGSketcher
Rockstar

@Too Long Have you checked the section marker isn't on a locked layer in the view map settings for the section view?

Apple iMac macOS Monterey / AC26UKI (most recent builds)

View solution in original post

11 REPLIES 11

Barry Kelly
Moderator

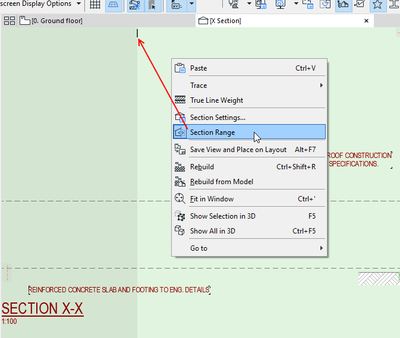

Right mouse click in the section.




Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Thanks Barry but this is what Im referring to. Works fine in Template but its stopped working in a Project file.




So you can see the range, just can't adjust it.

Have you tried turning it off/on?

Is it the same for all sections and elevations in that file?



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Thats the strange thing.



I can adjust it in elevation but not in section.



Can you drag the markers in plan?

That will change the width and maybe will reset something?



If you create a new section?



Check section settings (marker type, marker reference to, status of section view) - anything unusual there? - although that should not make any difference.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Ive actually tried all of that.



Even the new section does this.



Im at a total loss

DGSketcher
Rockstar

@Too Long Just to cover all bases, if you mean the height range of the section then you can turn on stretchy vertical limits in the section settings. By default sections are full height, but if you wanted to trim the view down for live details then these vertical height limits can be adjusted.

Apple iMac macOS Monterey / AC26UKI (most recent builds)

Solution
DGSketcher
Rockstar

@Too Long Have you checked the section marker isn't on a locked layer in the view map settings for the section view?

Apple iMac macOS Monterey / AC26UKI (most recent builds)

YES! You did it, thank you very much.

It seems the designer locked this layer to reduce the number of selectable layers.



Thank you very much

James B
Graphisoft
Graphisoft

It might be because it's from an Interior Elevation, which has a polygon boundary linking multiple - not just a single elevation. In this case the horizontal boundaries can't be adjusted inside the interior elevation. The polygon of the group needs to be adjust on floor plan.

Technical Product Manager, Graphisoft

@James B The icons in the view map match a Section View rather than an Interior Elevation.

Apple iMac macOS Monterey / AC26UKI (most recent builds)
