How do I show an autocad survey as a background in a plan on a layout?

proto
Enthusiast

I would like to show the autocad survey provided by the surveyor without redrawing it.

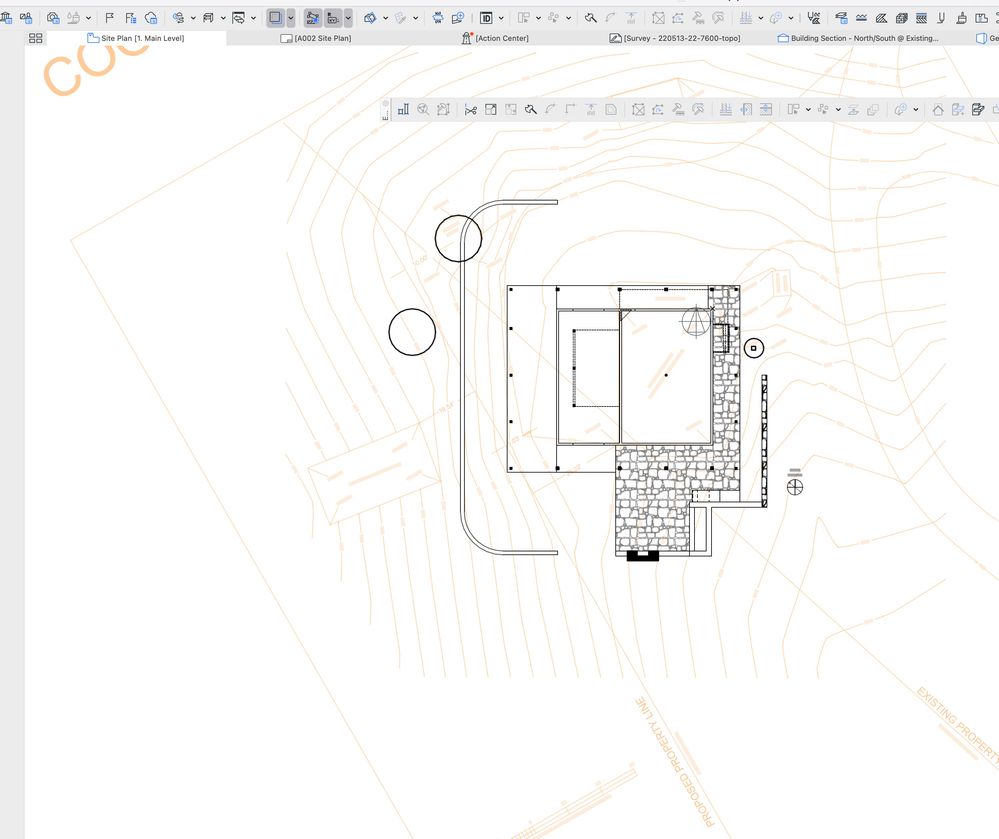

I am able to show it as a Trace reference after XREFing into a Worksheet. But I cannot figure how to get it to show up in a Saved View or in a Layout.



trace survey.jpg



Any help would be appreciated...thanks!

learning on mac ACv25/5010, US solo, Monterey 12.3.1, 2020 iMac
1 ACCEPTED SOLUTION

Solution
Gerry Leonor
Expert

import the DWG file as an external drawing into a Worksheet, save the view & put it into the layouts as a drawing behind the floor plan.

AC22 | Win10 | 64 bit | 16Gb RAM |Intel i7 8700 @ 3.20Ghz

come join our Discord server
https://discord.gg/XGHjyvutt8

View solution in original post

2 REPLIES 2

Solution
Gerry Leonor
Expert

import the DWG file as an external drawing into a Worksheet, save the view & put it into the layouts as a drawing behind the floor plan.

AC22 | Win10 | 64 bit | 16Gb RAM |Intel i7 8700 @ 3.20Ghz

come join our Discord server
https://discord.gg/XGHjyvutt8

thank you

(omg...duh, of course!!! i was trying to figure if there was some remote linked underlay kinda thing....sigh, i'm still understanding this app)



learning on mac ACv25/5010, US solo, Monterey 12.3.1, 2020 iMac
