I want to make the spacing between the section and the section view of the floor plan different.

LeeJaeYoung
Advisor

The section marker spacing in the plan view is 10.
I want the section views to be spaced 20.
What should I do?

AC25 5010 / AC26 4019 on window 11
1 ACCEPTED SOLUTION
13 REPLIES 13

Barry Kelly
Moderator

What section marker spacing are you referring to?

Can you post a screen shot?



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

I want to display a cross section of one wall in the plan view and two walls in the cross section.




this is revit

AC25 5010 / AC26 4019 on window 11

What does the spacing of 10 & 20 refer to?

What does it look like in Archicad and what do you want it to look like?



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10




AC25 5010 / AC26 4019 on window 11

my english is short
I am sorry that it was difficult to understand, although I expressed that the cross-sectional mark of the plane is different from what is shown in the cross-section. ^^

AC25 5010 / AC26 4019 on window 11

Yes I am aware language is an issue.

That is why images are important.

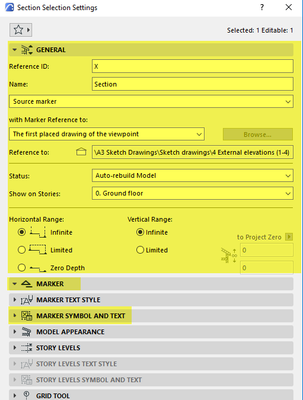

What are these settings for the section markers you show selected in your image?

I am suspecting it may not be a 'Source Marker'.

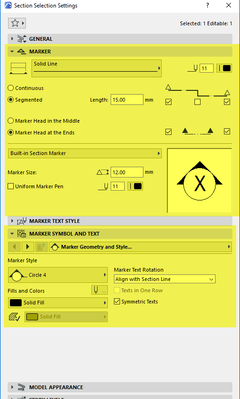

Can you show screen shots of these too please?









Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10



This is ready.
plane
If you only want a short mark on the section, lengthen it on the section and the mark will automatically lengthen.

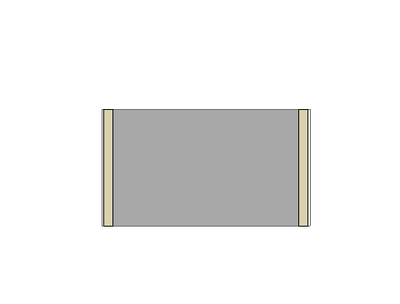

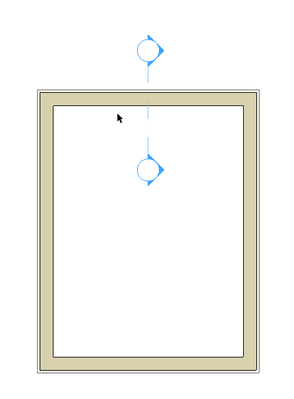

I captured one short plane and an image with long sections. Of course, it was elongated in the plane. But I hope it won't be long.


If I change it to linked, it becomes a shape that has no relation to the plane.









Even if a wall is added, there is no change in the cross section.



AC25 5010 / AC26 4019 on window 11

ah!
If you make a long section marker, then layer off
Are you creating and putting one linked section marker? ^^

AC25 5010 / AC26 4019 on window 11


If this method is correct, it will be troublesome to write letters.

AC25 5010 / AC26 4019 on window 11
