Making a powerpoint presentation,out of the Archicad project

Anonymous
Not applicable
Here is what i need:

I want to create a Power point (office 2007) presentation, with a project done in Archicad 12. As for the 3d, it is simple, i just need to render a picture, save it in any image format, and import it simply to the Power point page. But what about the floor plans? How can i import them to the powerpoint? Save them in archicad as .jpeg (is this possible?) and then import them as an image? Or is it better to import them as a .pdf file (again, is it possible to import a .pdf file to the Power point?)

Thanks for the answer.
14 REPLIES 14

Dwight
Newcomer
Screen captures get you the most precise views.

screen shot PC
Dwight Atkinson

Anonymous
Not applicable
here is a head scratcher!

I have a newish imac running xp on bootcamp.

of courseI have the apple keyboard but it doesnt have a print screen button, any ideas? is there another possible keybaord combination that does the same thing?

Anonymous
Not applicable
For an easy one, I made PDFs of the plans and other kinds of images and assembled from the files. Works.

Lew Bishop

Anonymous
Not applicable
Thanks for the tip both Dwight, and Lew.

@LewBishop: tell me, what did you mean by "assemled"? If i understood you corectly, you have saved a floor plan (or elevation, or section...) as a .pdf in archicad, and then converted a .pdf to .jpg , .gif or any other picture format?

Ralph Wessel
Mentor
Lennox wrote:
here is a head scratcher!
I have a newish imac running xp on bootcamp.
of courseI have the apple keyboard but it doesnt have a print screen button, any ideas? is there another possible keybaord combination that does the same thing?

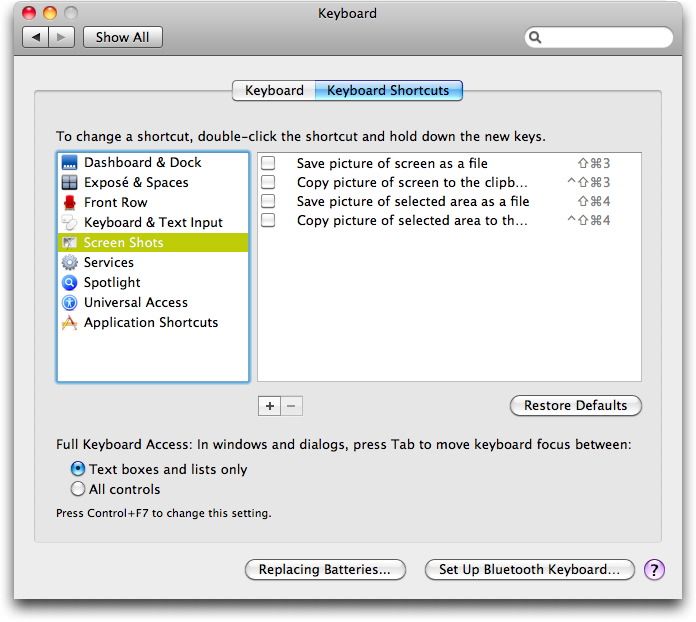

I'm puzzled by your configuration. If you have an iMac, why not install and use the Mac version of ArchiCAD rather than booting into XP through Bootcamp? If you use the Mac version, a variety screen-grab function are available. Usually cmd-shift-3 to take a snapshot of the whole screen or cmd-shift-4 to take a snapshot of a selected area. You can check the configuration for your Mac using the Keyboard settings in System Preferences (I've attached a snapshot from Snow Leopard).

However, the best option for exporting drawing for display purposes is usually PDF.
Ralph Wessel BArch

Anonymous
Not applicable
In response, Ralph was more thorough than I. In using the MAC OS, you can print PDFs very easily rather than saving as on the Win OS. Each is OK but the print function is simple.

By assembling I was referring to making all the parts - PDF, Jpeg etc as each has it's place in the final presentation. In addition there may be text pages needed for charts and graphs or other narrative that makes the presentation stand out. The reference to PDF is the use of that format as it is more universal than other formats that I have used in the construction of PP files. The ease with which you can connect with other presentation objects like projectors and other printing devices makes many of the resolution issues less constrictive when PDF is the base file type.

Lew Bishop

Anonymous
Not applicable
Happy Thanksgiving and my apology for the double post.

Lew Bishop

Lennox wrote:
f courseI have the apple keyboard but it doesnt have a print screen button, any ideas? is there another possible keybaord combination that does the same thing?
Besides the keyboard shortcuts, there is a small application that comes with the Mac called "Grab" (in Applications > Utilities) that gives you several options for capturing all or parts of the screen.

David
David Maudlin / Architect

www.davidmaudlin.com

Digital Architecture

AC26 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.15.7

Anonymous
Not applicable
Thanks for all the help. Just one thing: i am using a Windows XP, and a have noticed that pressing "print screen" button, enables creating the pictures with 72 dpi (dots per inch, i think). Is there any way i can make it higher than 72?

vistasp
Expert
72 PPI (pixels per inch) is the resolution of your monitor and that is what PrintScreen will capture.

If you want to enlarge it (or increase resolution) without getting artefacts you'll have to somehow vectorise it.

See: Capturing and Optimizing Screenshots for Print
= v i s t a s p =
bT Square Peg
https://archicadstuff.blogspot.com
https://www.btsquarepeg.com
| AC 9-26 INT | Win10 | Ryzen 5700 | 32 GB | RTX 3050 |

Anonymous
Not applicable
Ned,

IF you have Photoshop, try this:

Write a PDF from layout at hi res (like 300 dpi). Open in Photoshop, then save to a JPG, GIF or whatever you like. However, pay attention to the resolution settings during the conversion in PS... you want it to match the number you wrote it at.

This works great and yields a very sharp image.

You may be able to find a freeware that converts PDF to JPG if you don't have Photoshop.

Hope that helps.

Anonymous
Not applicable
Thanks for the answer both of you.

Dave, i have a Photoshop CS2, and i have understood you, but can you just explain me a little bit this:
Dave wrote:
However, pay attention to the resolution settings during the conversion in PS... you want it to match the number you wrote it at.

Anonymous
Not applicable
When saving file to pdf, at the archicad, i have chosen a 2400 dpi. When i try to open it in (.pdf file) at the Photoshop, i get a settings window, in wich i have to chose, a Color type, is it going to be 8 or 16 bit... and the most important: the number of "pixels per inch", or "pixels per cm". Wich number should i type? I don`t know is the dpi (dots per inch) is the same thing as "pixels per inch"? Is it or not?

While waiting someone to help with the above dillema, i have tried typing the "300" pixels per inch. Everything seems ok, i have got a huge image (about 4500x3000 pixels, wich would not be possible if i have used a print screen button). The only problem with this image, is that it does not have a margins, wich i have set at the Archicad .pdf file. Do i need to manualy add this margins to this .gif drawing (i am going to save it at the .gif for example) if i want to print it (at the beggining of these topic, i said that i want to create a image files out of my .pdf Archicad drawings, cause i need an image files for the Powerpoint presentation. But some time ago, i got this problem wich i can`t solve right now, cause i don`t have a place where to donwload that file (Hotfix), so i am going to solve this problem by opening a .pdf archicad file into Photoshop, editing it (adding a text in it) and then printing it. Oh, i supose this seems a pretty much confusing for anyone that reads this, so i will try to make myself more clear:

After opeing a .pdf Archicad file into the Photoshop, i seems that the margins have desapeared. Do i have to add them (by creating an iamge. enlarged for the marigins and then pasting on it, the image i got for the .pdf) if i want to print that image, with the options(margins) as the .pdf file?

Anonymous
Not applicable
Ned,

I think you're VERY close! Maybe I should describe like this:

Print (or 'publish') the layout you want to display in your power point presentation to a PDF from Archicad in Layout mode, just as if you were going to send it to a printing bureau / service. It would be plan sheet size (presumably). I usually write my PDF's at 150 dpi, but for what you're doing I would bump it up to 300. It should be big.. like 4000x3000 pixels or so... depending on your sheet size.

I open that PDF in Photoshop, just like you did, and edit the appropriate settings (color mode, bit depth, resolution). I usually have to tell Photoshop what resolution to use, as it defaults to 72 dpi. Too coarse!

I'm not sure what you mean by 'Margins'. If you mean your sheet border lines, title blocks, etc... Those should be in your layout, and print in the PDF.

However..... ! If you mean extra white space outside the borders lines, then you can do that with the 'canvas size' command in Photoshop.

My process assumes you're writing, or 'publishing' a layout with model views, text, title block, etc. placed, directly out of Archicad.

Hope that helps... Sorry I didn't reply sooner.
