Roof/Wall trimming issues

dsmgolf
Newcomer

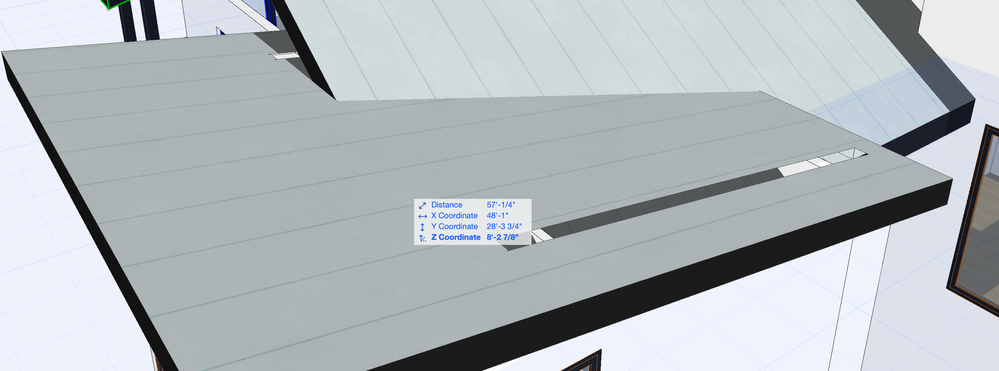

What is causing this issue? I use the connect tool to trim walls to roofs and occasionally it creates a void in the roof plane where the wall intersections. I am attaching an image

2 REPLIES 2

Barry Kelly
Moderator

Is your wall building material stronger then the roof building material?

If so the wall will cut through the roof.

For this reason I still prefer to use Solid Element Operations for walls and roofs.



Barry.




One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Miha_M
Expert

Could be a Layer Intersection Group problem. See if this GS Help Section gives you a solution.

Use Layers to Prevent Intersections | User Guide Page | GRAPHISOFT Help Center

Archicad 4.55 - 25 | HP Z840 | 2× E5-2643 v4 | 64 GB RAM | Nvidia Quadro M5000 @ Windows 10 Pro x64
