Roof edge/ fascia line thickness

Polar Bear
Booster

Hello,

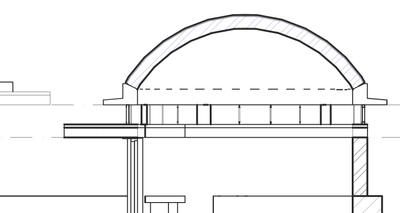

Why are my roof front/edge/ fascia line thickness not showing the same thickness as the rest?



Thanks

Screen Shot 2022-09-17 at 11.18.16.png

Archicad 25 - 5010
Macbook pro 13" /Big sur 11.4 + External 4K 27"
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

Is it formed from a Complex Profile? You will need to set the outline pen of the full used to generate the complex profile to the same pen as the roof you want to match or override it in settings.

Lee Hankins
ArchiCAD 4.5 - Archicad 27UKI Apple Silicon 27.1.1
macOS Sonoma (14.2)

View solution in original post

1 REPLY 1
Solution

Is it formed from a Complex Profile? You will need to set the outline pen of the full used to generate the complex profile to the same pen as the roof you want to match or override it in settings.
