Does anyone know if there is a way in Plotmaker of managing the display order of a title seperately from the drawing it's attached to? Maybe I'm missing something, but if you want to have a title visible in front of a drawing that includes some solid colour fills, it seems it always ends up behind them. And bring to front won't bring the title seperately in front of it's drawing.

And another seperate issue - who knows what happened to outline text style in Plotmaker? On the Mac at least, it disapppeared in v.9. Just a little loss.

Regards
23 REPLIES 23

Djordje
Advisor
Ray wrote:
Does anyone know if there is a way in Plotmaker of managing the display order of a title seperately from the drawing it's attached to?
AFAIK the background of the title is opaque by default, you have to set it to be transparent, and it is always in front of the drawing?
Djordje



ArchiCAD since 4.55 ... 1995
HP Omen

Anonymous
Not applicable
Ray

If you mean you want the title to show over a drawing that overlaps it, use the polygon frame (in Drawing Setting - Frame Output and Color tab) for your placed drawing and add vertices, stretch it around your title.
HTH

Anonymous
Not applicable
Djordje wrote:
AFAIK the background of the title is opaque by default, you have to set it to be transparent, and it is always in front of the drawing?
Djordje,

This doesn't seem to be the case for me. For me the title is always behind the drawing, and a bring to front action doesn't change this. And no matter wether the title is opaque or transparent it's always hidden by whatever may be in the drawing.

See attached snapshot.

Anonymous
Not applicable
Ahhhh, those titles. Oops

Djordje
Advisor
Ray wrote:
This doesn't seem to be the case for me. For me the title is always behind the drawing, and a bring to front action doesn't change this. And no matter wether the title is opaque or transparent it's always hidden by whatever may be in the drawing.
ARGH!

You are right, just re-checked; could have sworn that the title is always IN FRONT of the drawing, which is the logical place for it !?!?! Will check if this is officially a bug, because it should be!
Djordje



ArchiCAD since 4.55 ... 1995
HP Omen

Anonymous
Not applicable
Djordje wrote:
Will check if this is officially a bug, because it should be!
Thanks Djordje

Anonymous
Not applicable
I have the same problem in PM 9 with drawings on the master layout, they are always in the background.
Once I found the registry key in Windows to set it in the front but I installed a new computer and actually I don't find this key.
Any suggestions?
BTW I also want to turn on the classic 3D navigation palette which automatically disappeared switching to 2D window and didn't occupy a new row in the icon bar. It had many useful switches like Undo last change of view, perspective view cone slideswitch etc... which is the appropriate registry key?
THX.:

Zoltán

Thomas Holm
Booster
Djordje wrote:
Ray wrote:
This doesn't seem to be the case for me. For me the title is always behind the drawing, and a bring to front action doesn't change this. And no matter wether the title is opaque or transparent it's always hidden by whatever may be in the drawing.
ARGH!

You are right, just re-checked; could have sworn that the title is always IN FRONT of the drawing, which is the logical place for it !?!?! Will check if this is officially a bug, because it should be!
I don't have time to check right now, but I seem to recall that in AC10 (at least build 987) there's a parameter (check box or whatever) somewhere in the layout or master layout settings that lets you put the master in front or behind the layout's contents. Slap me if I dreamt!
AC4.1-AC24SWE-25INT; OSX11.5; MP5,1+MBP16,1

Rod Jurich
Contributor
Thomas wrote:
/............. Slap me if I dreamt!
Not dreaming, Tom.

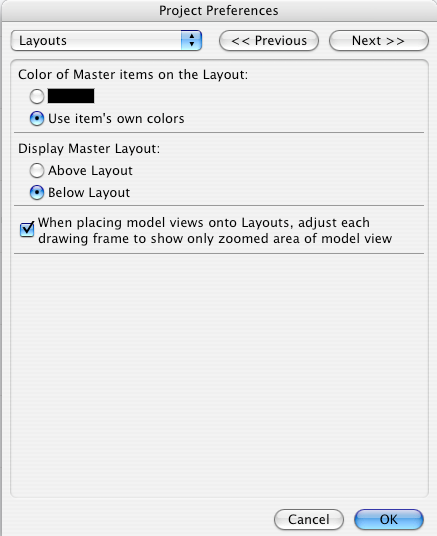

Picture 1.png
Rod Jurich
AC4.55 - AC14 INT (4204) |  | OBJECTiVE |

Thomas Holm
Booster
Ahh... Project Prefs! Thanks, Rod!
AC4.1-AC24SWE-25INT; OSX11.5; MP5,1+MBP16,1

Anonymous
Not applicable
Well my problem with Master layout is in AC9, this option of bringing it in the front or back does not exist. I'm sure that there is a registry key but I can not find it.
My other question with the classic 3D navigation palette is in AC10.
Any more suggestions?

Zoltán

Thomas Holm
Booster
Zoltan,

there IS a Classic 3D navigation palette available in AC10, but I don't think it auto-hides. I haven't used it much though, since I think the new Orbit feature is sooo much better!
AC4.1-AC24SWE-25INT; OSX11.5; MP5,1+MBP16,1

Anonymous
Not applicable
THX I found it, I had to open an additional row in the ikon taskbar for it 😞 it occupies place also when it is out of use... Anyway I like the orbit navigation in axonometric projection mode, but the old palette had many other buttons, like the angel of the perspective view cone etc.
Although I think we are getting far from the original subject "Title display order" let me ask how to realise 'perspective correction lens' effect in perspective view in AC 10. You know you are standing at a fixed point (eg. in the door of the garden) but the building's upper part is out of the view, while there is too much of the ground. You will not tilt the camera for not getting the vertical lines converged, neither go farther (out of the garden). In AC9 it was easy to 'pull down' the view with the mouses's wheel-button without changing the horizon, or angle of the camera. I hoped that in AC10 it would be able to save this panning value with the camera settings, but instead of developing this function, it is now completely missing of AC10. Actually if you push the wheel-button in perspective mode, it turns the view instead of panning it. I have to save back my projects in AC9 if I want to render in perspective view.
It's a good thing to get closer to the 3D gaming navigation but I think that we are gettig farther of architecture...
Balázs

Anonymous
Not applicable
Zoltán wrote:
let me ask how to realise 'perspective correction lens' effect in perspective view in AC 10. You know you are standing at a fixed point (eg. in the door of the garden) but the building's upper part is out of the view, while there is too much of the ground. You will not tilt the camera for not getting the vertical lines converged, neither go farther (out of the garden). In AC9 it was easy to 'pull down' the view with the mouses's wheel-button without changing the horizon, or angle of the camera. I hoped that in AC10 it would be able to save this panning value with the camera settings, but instead of developing this function, it is now completely missing of AC10.
I had also noted this missing, but in earlier versions it was also not possible to save this panned view in your saved 3D views in the navigator. As it isn't the true camera view, this does make sense but is quite limiting.

When I've wanted a shift vertically to reduce foreground but maintain parallel verticals, I've often increased my camera angle to get the correct top of the required picture then cropped the image after rendering, i.e. the top edge of the camera will be your final edge but you have to crop left, right & bottom.

Note: if you need a particular resolution, you will have to make the rendering larger to compensate.

Link
Expert
I think it's great that pans and zooms in the 3D window are actually being saved now.

Sounds like you guys may want to use your Navigator Preview for all that it's worth. You can still change the camera angle, as well as pan vertically.

Check the attached image.

Cheers,
Link.

Djordje
Advisor
Zoltán wrote:
It's a good thing to get closer to the 3D gaming navigation but I think that we are gettig farther of architecture...
Amen, brother!
Djordje



ArchiCAD since 4.55 ... 1995
HP Omen

Anonymous
Not applicable
Link wrote:
I think it's great that pans and zooms in the 3D window are actually being saved now.

Sounds like you guys may want to use your Navigator Preview for all that it's worth. You can still change the camera angle, as well as pan vertically.


Dear Link,

please start your AC9 and check my problem again, you did not understand it.
In AC 10 if you pan the view it changes the horizon height, that's the problem. In AC8-8.5-9 it was possible to pan the view without changing the horizon height or azimuth of the camera.
To explain better the situation check the paragraph 'Perspective correction at exposure' at the following link:
http://en.wikipedia.org/wiki/Perspective_correction#Perspective_correction_at_exposure
This is the base of architectural photography, and it is lost in AC10. We could say, that Graphisoft completely unfitted AC for architectural photography. Now it is only possible to get the same result with much work (after rendering) like Ray said. Is this the development tactic of Graphisoft?
A can only repeat myself... we are getting farther from architecture...
Zoltán

Thomas Holm
Booster
Ray wrote:
When I've wanted a shift vertically to reduce foreground but maintain parallel verticals, I've often increased my camera angle to get the correct top of the required picture then cropped the image after rendering, i.e. the top edge of the camera will be your final edge but you have to crop left, right & bottom.
Zoltan, I understand that the effect of what Ray describes is really what you want. Earlier AC versions allowed a pan to work like that, but they did not store this pan (since in reality it was a crop - AC stores viewpoints, directions and angles). I haven't tried it in AC10, but the obvious way is of course to increase the camera angle like Ray describes, save the view, place it on a layout and crop it there. THAT crop is stored.

This will be a problem if you render in Lightworks, because you'll have to increase the rendering resolution (more pixels) to get a good enough image.

But if you use the internal engine for line perspectives, or export 3D and render outside of Archicad, it shouldn't matter.
AC4.1-AC24SWE-25INT; OSX11.5; MP5,1+MBP16,1

Anonymous
Not applicable
Of course I've been rendering with Lightworks since it it is available.
I don't want to wait for rendered pixels, which I'll crop afterwards.
I liked in previous versions that you could get a final picture without any complications and timeloss. Now this is not possible.
Zoltán
