Un-Jog a Section Line?

Gus
Newcomer
How does one Un-Jog a Section Line?
In fact managing the jogs of a section line is a total mystery to me.
www.michaelgustavson.com Architect NY WI IL
Madison WI
Archicad21 MEP EcoDesSTAR Win10-64-bit
EliteBook8570W Corei7-3630QM@2.40GHz
QuadroK2000m RAM32 (2)250GBSSDs
4 Monitors Internet:4Up60Down
8 REPLIES 8
Anonymous
Not applicable
Hope this helps.
Gus
Newcomer
When I do this I am able to get rid of the jog, but (and maybe I'm being to anal retentive) but the "nodes" still remain once you have created them even if you make the section line straight.
www.michaelgustavson.com Architect NY WI IL
Madison WI
Archicad21 MEP EcoDesSTAR Win10-64-bit
EliteBook8570W Corei7-3630QM@2.40GHz
QuadroK2000m RAM32 (2)250GBSSDs
4 Monitors Internet:4Up60Down
Eduardo Rolon
Moderator
Grab the center point and drag it to the sides then you should not get the extra points.
Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

Gus
Newcomer
Awesome!
That did it.
That has frustrated me for years.
Thank you so much!
www.michaelgustavson.com Architect NY WI IL
Madison WI
Archicad21 MEP EcoDesSTAR Win10-64-bit
EliteBook8570W Corei7-3630QM@2.40GHz
QuadroK2000m RAM32 (2)250GBSSDs
4 Monitors Internet:4Up60Down
Anonymous
Not applicable
ejrolon wrote:
Grab the center point and drag it to the sides then you should not get the extra points.
Can't remember trying to undo multi points before, other than undo cmd.
Maybe that's a 17 fix? as that doesn't work here.
Center node moves the whole marker.
But maybe I'm missing the obvious:-)
Stress Co_
Advisor
3d4draww wrote:
ejrolon wrote:
Grab the center point and drag it to the sides then you should not get the extra points.
But maybe I'm missing the obvious:-)
Check Eduardo's screen shot again (the yellow lines). You have to grab the center point while there is still a "jog". Works for me in AC16 (& 17)
Marc Corney, Architect
Red Canoe Architecture, P. A.

Mac OS 10.15.7 (Catalina) //// Mac OS 14.2.1 (Sonoma)
Processor: 3.6 GHz 8-Core Intel Core i9 //// Apple M2 Max
Memory: 48 GB 2667 MHz DDR4 //// 32 GB
Graphics: Radeon Pro 580X 8GB //// 12C CPU, 30C GPU
ArchiCAD 25 (5010 USA Full) //// ArchiCAD 27 (4030 USA Full)
Eduardo Rolon
Moderator
In addition to Stress.com:

1. If you have move the segments to be horizontal then you will need to separate them and then drag the point in the perpendicular (to the section) segment to either side. Based on the side you choses the section line will move down or up to match the side chosen.
2. This will work with multiple splits though you will need to do it one by one

----
This option has been available as long as I remember but it is possible that it was included first in AC11 (2007).

http://helpcenter.graphisoft.com/guides/archicad-17-int-reference-guide/virtual-building/archicad-mo...
Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

Anonymous
Not applicable
Interesting exercise.
The devil or good is always in the details.
{as my typo in image} 🙂

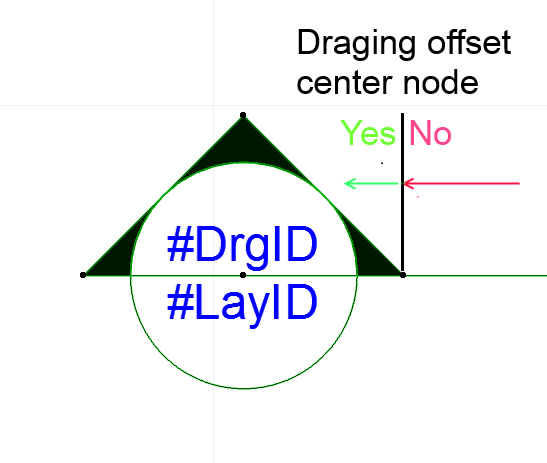

Attachment shows the threshold point for dragging
the still offset section's center point node to the sides
to delete intermediate nodes.
Thanks All
