Wall Tags

Steve Jepson
Advisor

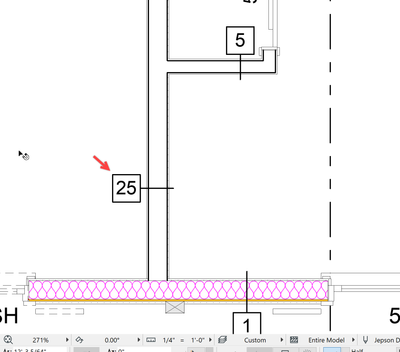

Why is it so difficult to place a Wall Tag/label  with this sort of readable orientation?

How are you doing it?  What Label are you using ?




ArchiCAD 25 4013 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro

1 ACCEPTED SOLUTION

Solution

Steve:

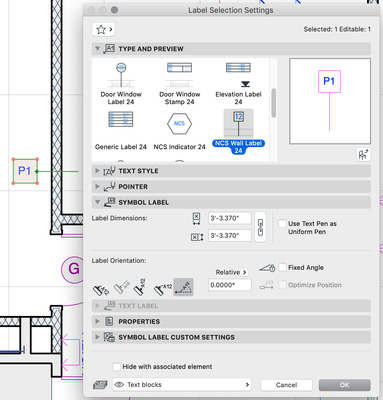

This can work. Note the Label Orientation is set to Custom Angle, although the angle itself does not matter.



David




David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC24 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.14.6

View solution in original post

3 REPLIES 3

what I've learned is that AC walls like to be drawn in a clockwise orientation. when I'm tagging walls I turn the wall reference vectors on and use the "Invert Wall Direction" and or "Modify Wall Reference Line" to mirror in place. I do this instead of trying to make the labels do too many gymnastics. The only downside to this is to try and do this before you have too many dimensions set. They'll require attention as well.

Think Like a Spec Writer

AC24-6004 / USA AC25-4013 USA

Rhino 7 Mac

MacOS 11.6.1

Solution

Steve:



This can work. Note the Label Orientation is set to Custom Angle, although the angle itself does not matter.



David




David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC24 USA • iMac 27" 4.0GHz Quad-core i7 | 24 gb ram • MacBook Pro 2.8GHz | 16 gb ram • OSX10.14.6

View solution in original post

Thanks.  That works easy enough. I was having a difficult time getting that specific orientation with the other Labels I was using.  Composite Profile Name 25 and Property Label 25.  Not sure why I was not using the NCS Wall Label.  I usually do.
