Windows setback on elevation view/3d view and right on plan view

2raarchitecture
Booster

I am working on a project with a window object that looks positioned correctly on the plan view, but it looks set back (position some inches inside of the room) on the elevation/3d view. Has anyone found this?



2RA Building Workshop
www.2rabldgworkshop.com

11th Gen Intel(R) Core(TM) i7-11800H @ 2.30GHz. 16.0 GB. NVIDIA GeForce RTX 3060 Laptop GPU.
ArchiCAD 25. 5002 USA Full
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

OK.

I assume your complex profile wall gets thicker and thinner at different heights.

You can set the anchor of the window to the head or sill.

That may help.



But the best option is in the complex profile settings.

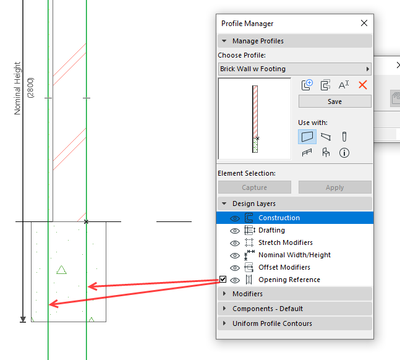

You can activate the 'Opening Reference' lines.

Set the one on the front of the wall to the position you want the reveal offset to be measured from.

This will be where the front of you frame is measured from in 3D.

The back one doesn't matter so much.






Barry.



One of the forum moderators.
