Element Previews do not work in Headlines of Schedules

Emoke Csikos
Graphisoft
Graphisoft

Affected versions: ARCHICAD 21 and older | Severity: workaround applicable | ID: 140886

Issue:

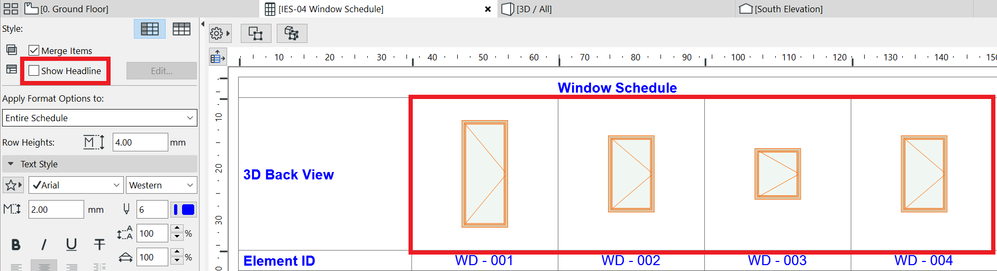

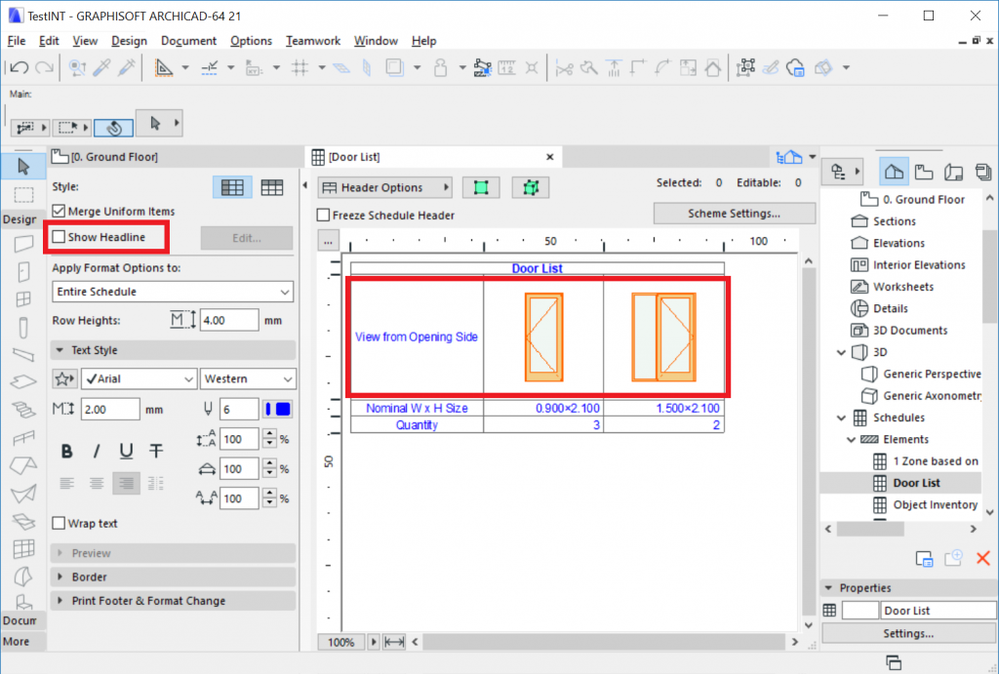

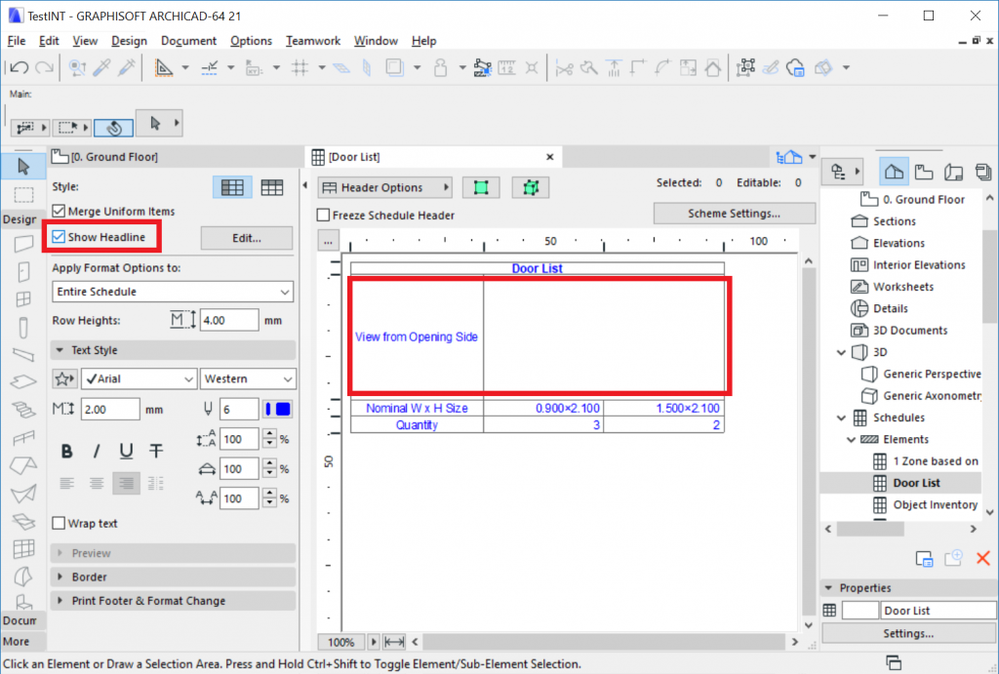

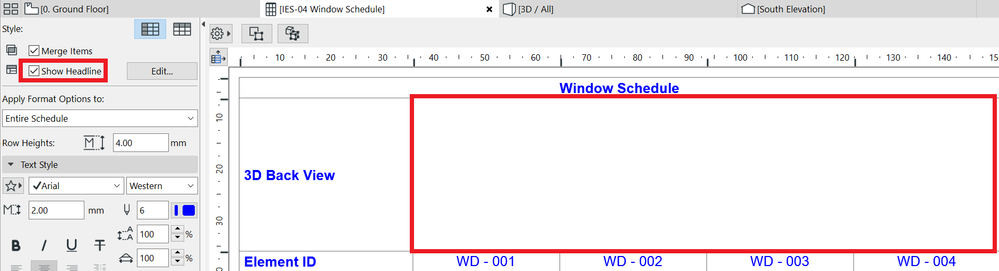

If the first row(s) or column(s) of an Interactive Schedule display element previews (such as 2D Plan Preview, 2D Cross Section Preview, 3D Axonometry or a View from one of the sides of the element), and the Show Headline style option is turned on, the graphical content of these fields will disappear.


Cause:

Show Headline option was basically designed for fields with text type data to group elements that have the same value of a parameter.

Workaround:

Move the graphical fields to a different part of the schedule so they will not be a part of the headline.

Solution:

The error is planned to be fixed later.
